Product Code : VF--DCC-D111-CU
Pressure: PN1.0-42.0Mpa, Class150-2500Lb
Nominal diameter: DN50 - DN1200, 2 "- 4"
Drive methods: pneumatic, worm gear, hydraulic, electric
Applicable medium: Strongly corrosive medium
Design standards: GB/T12238, JB/T8527, MSS SP-68, API609
Structural length: GB/T12221, API6D, ASME B16.10.
Connection flange: HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Test standards: JB/T9092, GB/T13927, API598.
Main materials: Pure nickel alloys 600, 625, 800H, 825, pure nickel N4, N6, N200, N201, CZ200, etc
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

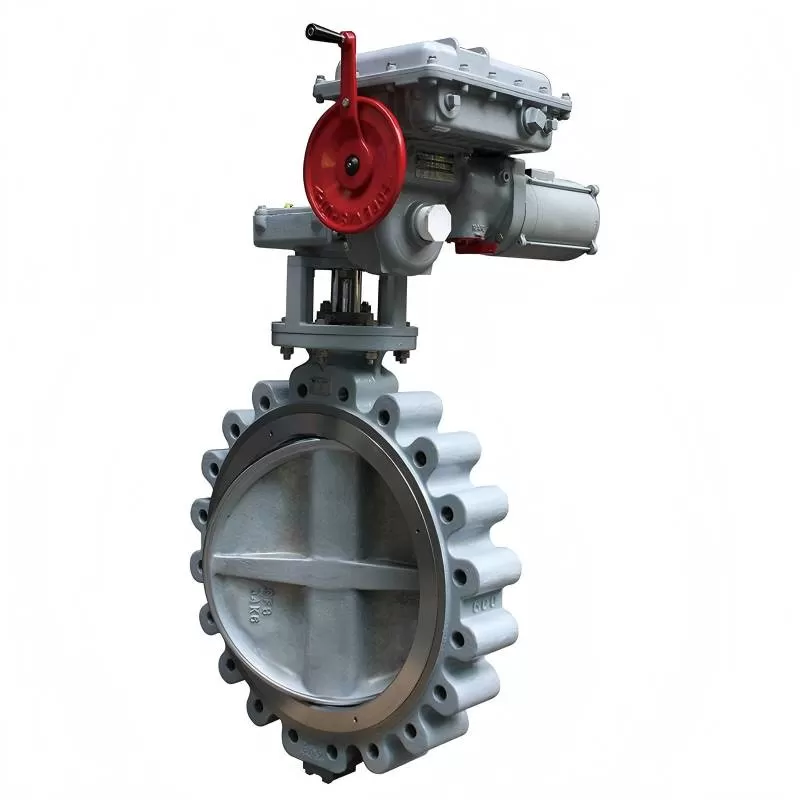

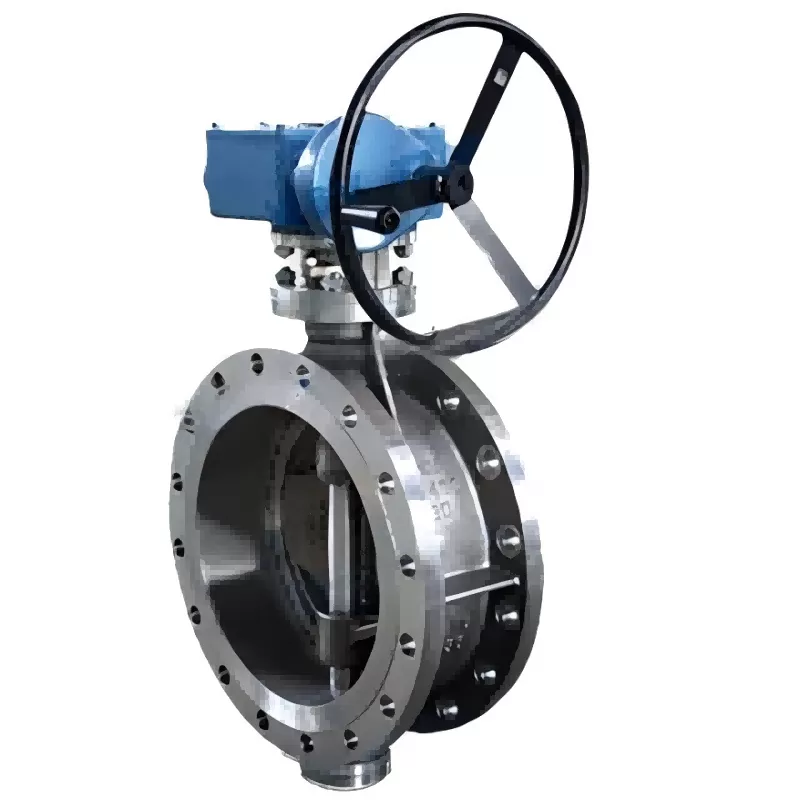

The D343F-16N6 nickel butterfly valve is installed in the diameter direction of the pipeline. It adopts a sealed U-shaped elastic sealing ring and a three-eccentric multi-layer metal hard sealing structure, and is widely used in petrochemical industrial pipelines where the medium temperature is ≤425℃, for regulating flow and cutting off fluid. Whether N6 pure nickel can resist the corrosion of working environment media, such as high-temperature concentrated alkali and fluoric acid, depends on the chemical stability of the "passive oxide film" on its surface in corrosive media.
Characteristics of D343F-16N6 nickel Butterfly Valve
The three-eccentric sealing structure ensures almost no wear between the valve seat and the butterfly plate, and it has a sealing function that becomes tighter the more you observe
2. Large-sized butterfly plate quilting structure, featuring high strength, large flow area and low flow resistance
3. It has a bidirectional sealing function. During installation, it is not restricted by the flow direction of the medium or affected by the spatial position, and can be installed in any direction
4. The drive unit can be installed at multiple stations (rotating 90° or 180°), which is convenient for users to operate
The D343F-16N6 nickel butterfly valve is installed in the diameter direction of the pipeline. It adopts a sealed U-shaped elastic sealing ring and a three-eccentric multi-layer metal hard sealing structure, and is widely used in petrochemical industrial pipelines where the medium temperature is ≤425℃, for regulating flow and cutting off fluid. Whether N6 pure nickel can resist the corrosion of working environment media, such as high-temperature concentrated alkali and fluoric acid, depends on the chemical stability of the "passive oxide film" on its surface in corrosive media.
