2205 double-phase steel triple eccentric butterfly valve,2205 triple eccentric butterfly valve,2205 butterfly valve

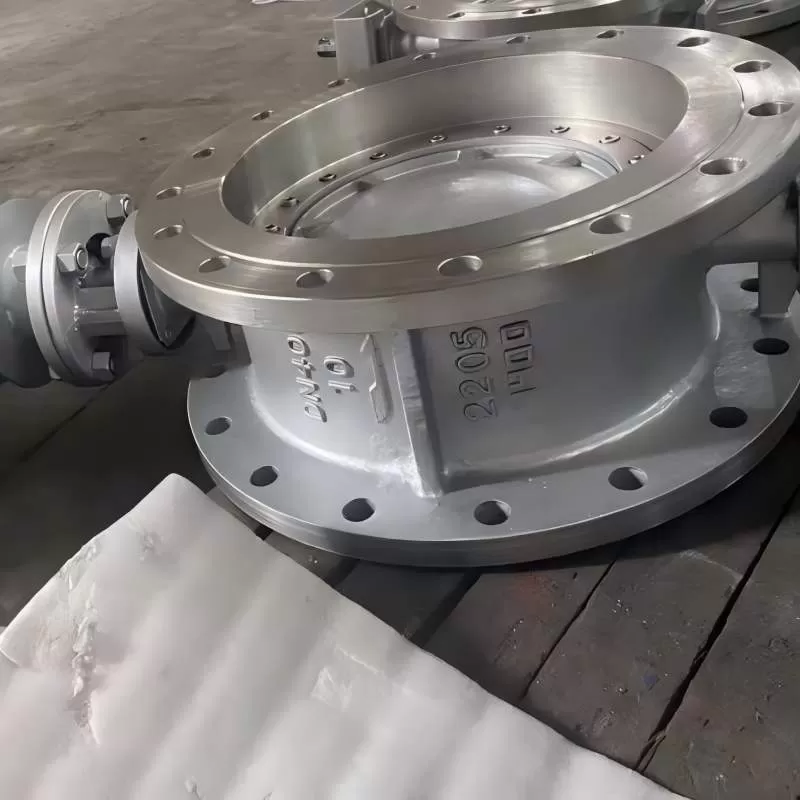

The 2205 duplex steel triple eccentric butterfly valve is a corrosion-resistant valve, suitable for media such as seawater, acid solutions, high-concentration chloride ion liquids, and high-salt wastewater. Model: D343W, D343F, D643W, D643F, D943F, D943W, Pressure: PN1.0MPA-6.4MPA, Diameter DN50-DN1200.

The 2205 duplex steel triple eccentric butterfly valve is made of 2205 duplex steel. 2205 duplex steel is a ferritic-austenitic duplex stainless steel, which combines the beneficial properties of both ferritic and austenitic structures. It has a high content of chromium and molybdenum, thus having excellent resistance to pitting corrosion, crevice corrosion and uniform corrosion, as well as a high resistance to stress corrosion cracking. And the mechanical strength is also very high.

The 2205 duplex steel triple eccentric butterfly valve is composed of main components such as the valve body, butterfly plate, valve stem and sealing ring. The valve structure is designed based on the three-dimensional eccentric principle, ensuring reliable sealing and meeting various standards. Meanwhile, it has good flow characteristics and a regulating function.

The three-eccentric butterfly valve achieves zero leakage sealing through the elasticity of the sealing ring on the butterfly plate. The contact surface between the sealing ring and the valve seat is an inclined conical surface. The contact Angle between the butterfly plate sealing ring and the valve body and valve seat generates a slight "wedge effect", causing the sealing ring to undergo flexible movement and radial compression. Due to the uniform contact between the valve seat and the sealing ring as well as the flexibility of the sealing ring, the load loaded on the valve seat is uniform, the torque is small, and the seal is tight.

The 205 duplex steel triple eccentric butterfly valve is made of 2205 duplex steel. 2205 duplex steel is a ferritic-austenitic duplex stainless steel, which combines the beneficial properties of both ferritic and austenitic structures. It has a high content of chromium and molybdenum, thus having excellent resistance to pitting corrosion, crevice corrosion and uniform corrosion, as well as a high resistance to stress corrosion cracking. And the mechanical strength is also very high.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
