Product Code : VF--QCC-Q266-CU

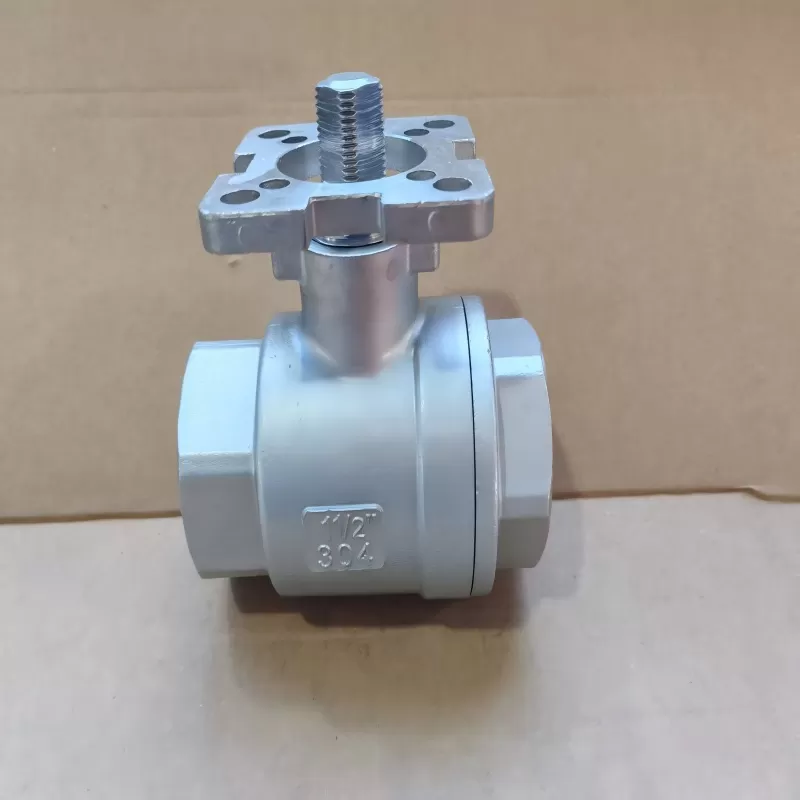

Product Name: Two-piece High Platform Ball Valve
Product Model: Q11F
Nominal diameter: DN6 - DN100
Structural form: Spherical
Nominal pressure: 1.6Mpa to 6.4Mpa (W.O.G) Connection method: Internal thread
Applicable temperature: -20 to 232℃ to 350℃
Drive mode: manual, electric, pneumatic
Valve body material: cast steel, stainless steel
Manufacturing standards: National standard GB, German DIN, American API, ANSI
Applicable media: water, oil, gas and certain corrosive liquids
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
The Q11F two-piece high-platform ball valve is suitable for pipelines with a pressure range of PN1.0 to 6.4MPa and a working temperature range of -29 to 180℃(with reinforced polytetrafluoroethylene sealing ring) or -29 to 300℃(with polystyrene sealing ring), and is used to cut off or connect the medium in the pipeline. By choosing different materials, it can be respectively applied to various media such as water, steam, oil products, nitric acid, acetic acid, etc.
Product Features
The casting of the two-piece high level billiard valve body adopts the advanced technology introduced from Taiwan, with a reasonable structure and beautiful shape. The valve seat adopts an elastic sealing structure, which ensures reliable sealing and easy opening and closing. The valve stem adopts a bottom-mounted structure with an inverted seal. When the valve cavity abnormally increases in pressure, the valve stem will not be pushed out. The connection forms of two-piece and three-piece ball valves also include butt welding (BW) and socket welding (SW), and all can be equipped with international standard ISO support platforms and locking devices. A 90° switch positioning mechanism can be set up. Locking can be added as needed to prevent misoperation. Drive methods: manual, electric, pneumatic.
The Q11F two-piece high-platform ball valve is suitable for pipelines with a pressure range of PN1.0 to 6.4MPa and a working temperature range of -29 to 180℃(with reinforced polytetrafluoroethylene sealing ring) or -29 to 300℃(with polystyrene sealing ring), and is used to cut off or connect the medium in the pipeline. By choosing different materials, it can be respectively applied to various media such as water, steam, oil products, nitric acid and acetic acid.
