Product Code : VF--QCC-Q265-CU

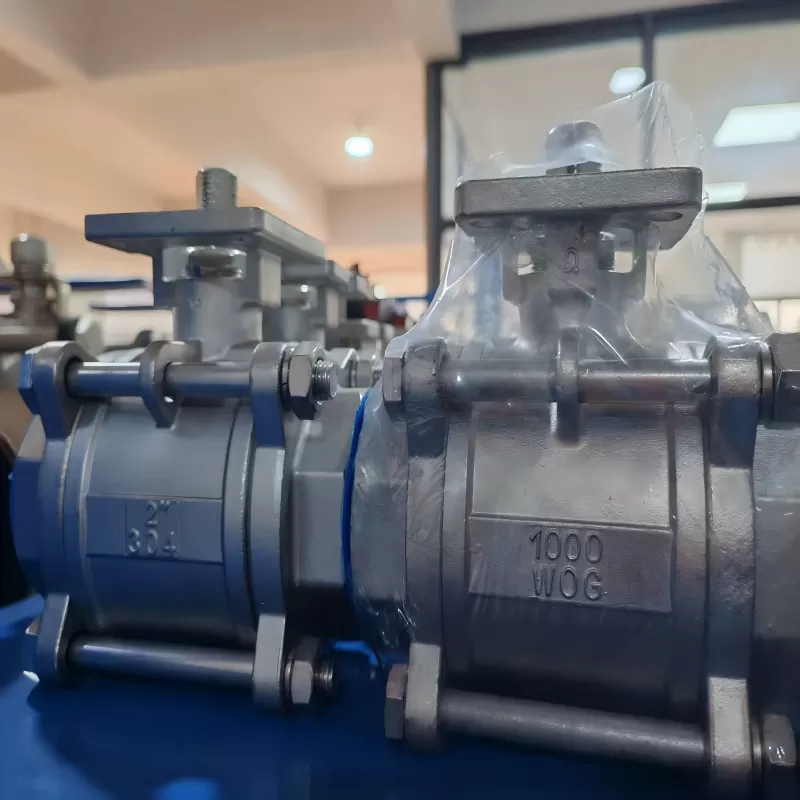

Product Name: Three-piece High Platform Ball Valve
Product models: Q11F, Q41F, Q61F, Q81F
Nominal diameter: DN15 - DN800
Structural form: Spherical
Nominal pressure: 1.6Mpa to 16.0Mpa
Connection methods: threaded, flange, welding, clamp
Applicable temperature: -20 ° C to +180 ° C to 550 ° C
Drive mode: Manual
Valve body material: Stainless steel, 304, 316, 316L \ nManufacturing standards: National standard GB, German DIN, American API, ANSI
Applicable media: water, oil, steam, gas, corrosive liquids
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
The three-piece high-platform ball valve is mainly used to cut off or connect the medium, and can also be used for the regulation and control of fluids. Compared with other types of valves, ball valves have advantages
The fluid resistance is small. Among all types of valves, the ball valve has the least fluid resistance. Even the bore ball valve has a relatively small fluid resistance.
2. The switch is quick and convenient. As long as the valve stem rotates 90°, the ball valve completes the full opening or full closing action, making it very easy to achieve rapid opening and closing.
3. Good sealing performance. The sealing ring of the ball valve seat is generally made of elastic materials such as polytetrafluoroethylene, which is easy to ensure sealing. Moreover, the sealing force of the ball valve increases with the increase of the medium pressure.
4. The valve stem seal is reliable. When the ball valve is opened or closed, the valve stem only rotates. Therefore, the packing seal of the valve stem is not easily damaged, and the sealing force of the valve stem's reverse seal increases with the increase of the medium pressure.
5. The opening and closing of the ball valve only requires a 90° rotation, making it easy to achieve automatic control and remote control. The ball valve can be equipped with pneumatic devices, electric devices, hydraulic devices, pneumatic-hydraulic interlocking devices or electro-hydraulic interlocking devices.
6. The ball valve channel is smooth and flat, making it less likely for media to deposit and allowing for pipeline ball passage.
The three-piece high-platform ball valve is mainly used to cut off or connect the medium, and can also be used for the regulation and control of fluids.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
