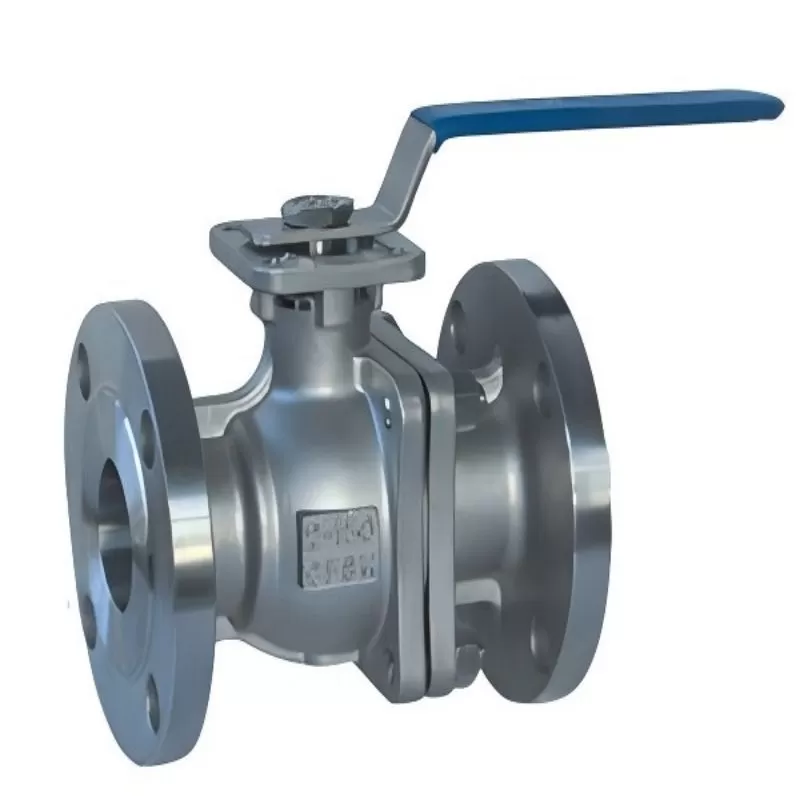

Product Code : VF--QCC-Q278-CU
Product working pressure: 16Mpa to 4.0Mpa. Temperature: -20 to +300℃.
Product working medium: gasoline, heavy oil, kerosene, hydraulic oil, fuel oil, refrigeration oil, water, salt water, acidic and alkaline liquids, etc.
Product connection methods: internal thread, quick installation, flange, butt welding, socket welding, and extension welding.
The product is made of carbon steel, stainless steel sus201, stainless steel sus304 and stainless steel sus316.
Product thread types: NPT, ZG, G, BSPT, BSP, DIN259/2999 (Chinese standard, American standard, British standard).
Product diameter or specification: DN8 - DN100 (1/4 "- 4").
Technical Specification
Design standards: GB/T12237, API6D, BS5351
Pressure and temperature rated values: GB/T12224, ASME B 16.34
Structural length: GB/T12221, ASMEI B16.10, BS4460, DIN3202
Connection flange standards: GB9113, JB79, ASME B16.5a
Din2543-2546, BS4504, JISB2213-2216
Test and inspection standards: GB/T13927, ISO5208, API598, API6D
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Ball valves were introduced in the 1950s. With the rapid development of science and technology and the continuous improvement of processes and product structures, they have rapidly developed into a major type of valve within just 40 years. In the industrialized countries of the West, the use of ball valves is increasing year by year. In China, ball valves are widely used in industries such as petroleum refining, long-distance pipelines, chemical engineering, papermaking, pharmaceuticals, water conservancy, power, municipal services, and steel, playing a crucial role in the national economy.
Simple structure, small volume and light weight.
The ball valve is tight and reliable. Currently, plastic is widely used as the sealing surface material of the ball valve, which has good sealing performance and has also been widely used in vacuum systems.
It is easy to operate and opens and closes quickly. It only needs to be rotated 90° from fully open to fully closed, which is convenient for remote control.
The ball valve is easy to maintain. It has a simple structure and the sealing rings are usually movable, making disassembly and replacement relatively convenient.
When fully open or fully closed, the sealing surfaces of the ball and the valve seat are isolated from the medium. When the medium passes through, it will not cause erosion of the valve's sealing surfaces.
It has a wide range of applications. When the ball rotates 90 degrees, the entire spherical surface should be presented at the inlet and outlet to cut off the flow.
Ball valves are widely used in industries such as petroleum refining, long-distance pipelines, chemical engineering, papermaking, pharmaceuticals, water conservancy, power, municipal services, and steel, and play a crucial role in the national economy.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
