Product Code : VF--QCC-Q267-CU

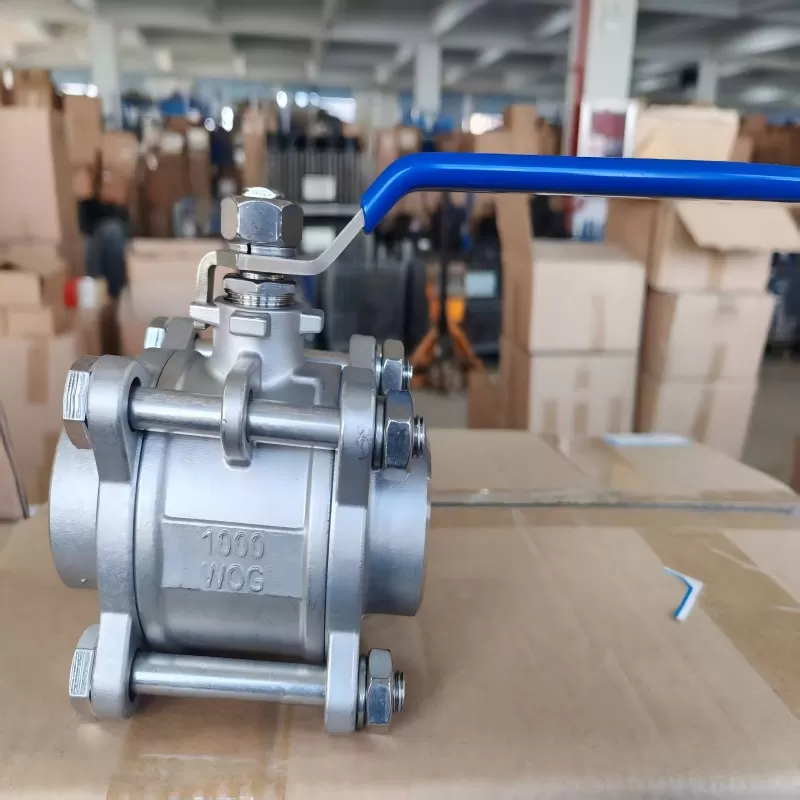

Product Name: Three-piece Welded Ball Valve
Product Model: Q61F
Nominal diameter: DN6 - DN100
Structural form: Spherical
Nominal pressure: 1.6Mpa to 6.4Mpa (W.O.G) Connection method: Welding
Applicable temperature: -20 to 232℃ to 350℃
Drive mode: manual, electric, pneumatic
Valve body material: cast steel, stainless steel
Manufacturing standards: National standard GB, German DIN, American API, ANSI
Applicable media: water, oil, gas and certain corrosive liquids
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
The Q61F three-piece welded ball valve is suitable for pipelines with a pressure range of PN1.0 to 6.4MPa and a working temperature range of -29 to 180℃(with reinforced polytetrafluoroethylene sealing ring) or -29 to 300℃(with polystyrene sealing ring), and is used to cut off or connect the medium in the pipeline. By choosing different materials, it can be respectively applied to various media such as water, steam, oil products, nitric acid, acetic acid, etc.
Product Features
It consists of three parts, which is convenient for later maintenance and replacement.
The advanced silica sol process features a reasonable structure and an elegant appearance.
The 3 valve seats adopt an elastic sealing structure, which is effortless to open and close, lightweight and has good sealing performance.
The valve stem adopts a bottom-mounted structure with an inverted seal. The valve stem will not fly out due to internal pressure, ensuring safety
working temperature range of -29 to 180℃(with reinforced polytetrafluoroethylene sealing ring) or -29 to 300℃(with polystyrene sealing ring), and is used to cut off or connect the medium in the pipeline. By choosing different material
