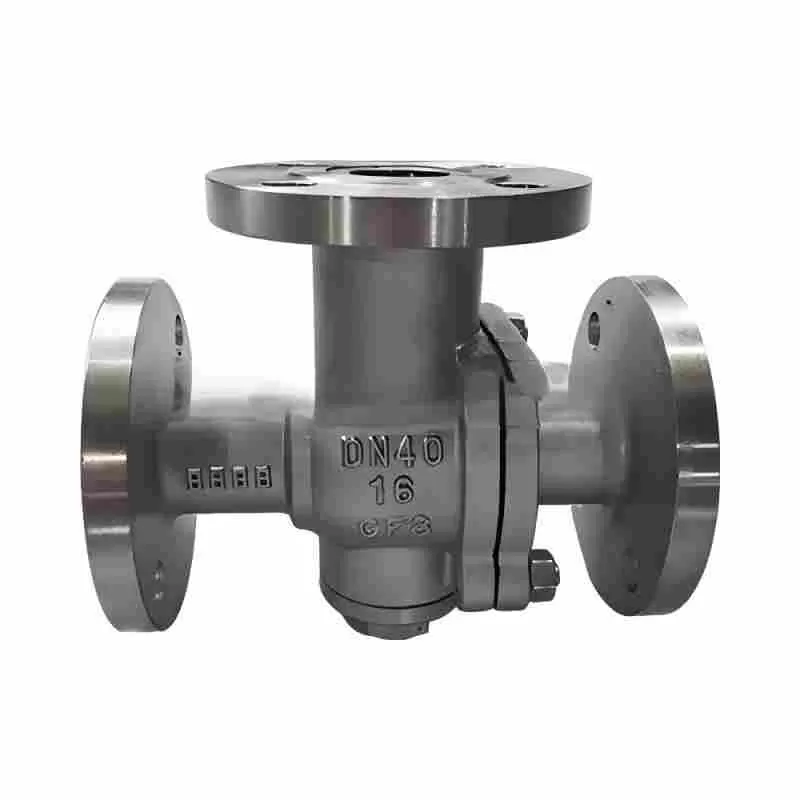

T-type three-way stainless steel ball valve,three-way stainless steel ball valve,ball valve

The Q44F and Q45F three-way ball valves can be classified into L-shaped and T-shaped types. The L-shaped (Q44F) three-way ball valve is used for switching the flow direction of the medium and can connect two mutually perpendicular channels. The T-shaped (Q45F) three-way ball valve is used for medium diversion, convergence and flow direction switching. A T-shaped tee can connect three channels to each other or connect two of them.

Features:

The three-way ball valve adopts an integrated structure in terms of structure, featuring a four-sided valve seat sealing type. It has fewer flange connections, high reliability, and is designed to achieve lightweight.

2. The three-way ball cores are available in T-shaped and L-shaped types, featuring a long service life, large flow capacity and low resistance.

3. Ball valves are classified into two types based on their action: single-acting and double-acting. The characteristic of the single-acting type is that once the power source fails, the ball valve will be in the state required by the control system.

The three-way ball valves Q44F and Q45F are widely applicable to various media such as water, oil, gas, nitric acid and acetic acid.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original cond
