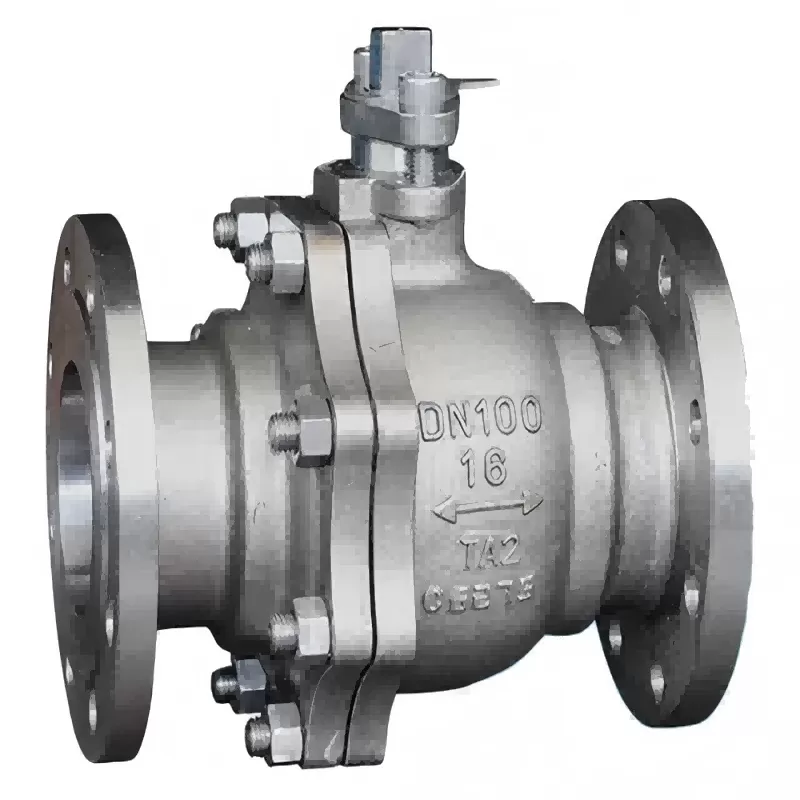

Q41F-16 25Ti titanium ball valve,Ti titanium ball valve,ball valve

The Q41F-16/25Ti manual flanged titanium ball valve takes advantage of the excellent stability and self-passivation ability of the oxide film of titanium metal material in a highly corrosive environment to resist strong corrosion under various harsh working conditions. The chemical stability of the passive oxide film on its surface in corrosive media. For neutral, oxidizing and weakly reducing medium environments, the passive oxide film itself has very good stability. For high-temperature or low-pH reductive corrosive media, to enhance the stability of the passive oxide film, methods such as adding corrosion inhibitors (such as air, water, heavy metal ions and anions, etc.), titanium surface ion modification treatment, and anodizing treatment can be adopted to improve the corrosion resistance and surface hardness of titanium in reductive media to meet the application requirements. It is used to cut off or connect the medium in pipelines and is widely applied in the chlor-alkali industry, soda ash industry, pharmaceutical industry, fertilizer industry, fine chemical industry, textile fiber synthesis and dyeing industry, basic organic acid and inorganic salt production, nitric acid industry, etc

Product features of Q41F-16/25Ti titanium Ball Valve

The ball of the titanium ball valve is floating. Under the action of the medium pressure, the ball can produce a certain displacement and tightly press against the sealing surface at the outlet end to ensure the sealing at the outlet end.

The floating titanium ball valve has low flow resistance. Among all types of valves, the ball valve has the least fluid resistance. Even the reduced bore ball valve has relatively low fluid resistance.

2. The switch is quick and convenient. As long as the valve body rotates 90°, the ball valve completes the full opening or full closing action, making it very easy to achieve rapid opening and closing.

3. Good sealing performance. The valve seat (sealing ring) of titanium ball valves is generally made of elastic materials such as PTFE (polytetrafluoroethylene), which is easy to ensure sealing. Moreover, the sealing force of titanium ball valves increases with the increase of medium pressure.

4. The floating titanium ball valve can achieve automatic control and remote control, and can be equipped with electric devices, pneumatic devices or hydraulic devices.

5. The floating titanium ball valve has a smooth and flat channel, which is not prone to medium deposition and can be used for pipe cleaning and ball passage.

The Q41F-16/25Ti manual flanged titanium ball valve takes advantage of the excellent stability and self-passivation ability of the oxide film of titanium metal material in a highly corrosive environment to resist strong corrosion under various harsh working conditions. The chemical stability of the passive oxide film on its surface in corrosive media. For neutral, oxidizing and weakly reducing medium environments, the passive oxide film itself has very good stability. For high-temperature or low-pH reductive corrosive media, to enhance the stability of the passive oxide film, methods such as adding corrosion inhibitors (such as air, water, heavy metal ions and anions, etc.), titanium surface ion modification treatment, and anodizing treatment can be adopted to improve the corrosion resistance and surface hardness of titanium in reductive media to meet the application requirements. It is used to cut off or connect the medium in pipelines and is widely applied in the chlor-alkali industry, soda ash industry, pharmaceutical industry, fertilizer industry, fine chemical industry, textile fiber synthesis and dyeing industry, basic organic acid and inorganic salt production, nitric acid industry, etc

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
