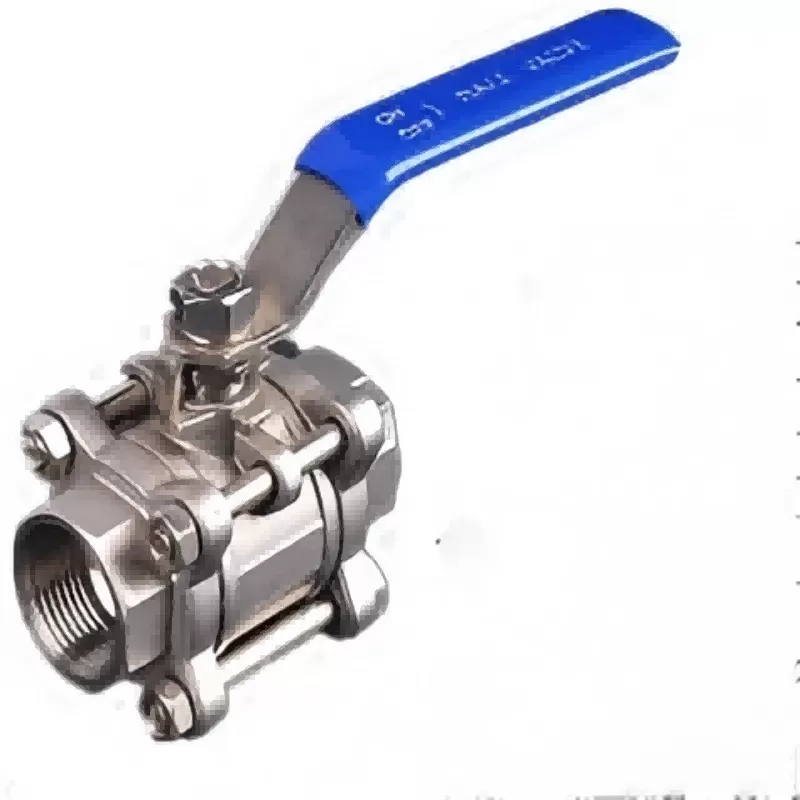

Q11F-16-64P stainless steel three-piece threaded ball valve, three-piece threaded ball valve,threaded ball valve,ball valve

Product Code : VF--QCC-Q294-CU

Nominal diameter DN(mm) 8-150.

Nominal pressure 1.0-4.0 MPa

Applicable stable range -20 to 232℃ to 350℃

Applicable media: water, oil, gas and certain corrosive liquids (W. O. G

Thread type G. NPT. BSPT. BSP. DI259/2999

Drive mode: manual, electric, pneumatic.

It can be respectively applied to various media such as water, steam, oil products, nitric acid and acetic acid.



Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Product Product Code Purity Size Contact Us
Q11F-16-64P stainless steel three-piece threaded ball valve, three-piece threaded ball valve,threaded ball valve,ball valve VF--QCC-Q294-CU Customized Customize

Overview of Q11F-16-64P Stainless Steel Three-Piece Threaded Ball Valve:

Stainless steel three-piece ball valves are used in the extraction, refining and processing, and pipeline transportation systems of oil, natural gas, coal and ores. In the production of chemical products, medicine and food; In the power generation systems of hydropower, thermal power and nuclear power; In the water supply and drainage, heating and gas supply systems of cities and industrial enterprises; In the irrigation and drainage system of farmland; It is widely applied in metallurgical production systems and is an important mechanical product closely related to production and construction, national defense construction and people's lives. Ball valves are sealed in various pipeline systems to cut off or connect the flow of media. Three-piece internal thread ball valves and butt-welded connection ball valves are suitable for pipelines with a pressure range of PN1.0 to 4.0MPa and a working temperature range of -29 to 180℃(with reinforced polytetrafluoroethylene sealing rings) or -29 to 300℃(with polystyrene sealing rings). It is used to cut off or connect the medium in the pipeline. By choosing different materials, it can be respectively applied to various media such as water, steam, oil products, nitric acid, acetic acid, etc. The predetermined program is delivered to each designated point.


Features of Q11F-16-64P Stainless steel three-piece threaded Ball Valve:

Among various valves, ball valves have the smallest flow resistance. When a full-bore ball valve is opened, the ball passage, valve body passage and connecting pipe diameters are equal and form the same diameter, allowing the medium to flow through almost without any loss. The direction of this valve can be chosen arbitrarily and it has a bidirectional function.

2. It is easy to operate and opens and closes quickly. The ball valve can be fully closed and opened by rotating 90°. It opens and closes quickly and can be adjusted freely by pneumatic or electric means. Compared with gate valves and globe valves of the same specification, ball valves are smaller in size, lighter in weight, have better energy-saving effects and are convenient for pipeline installation.

3. The connection methods of the valves and pipe fittings produced by our company include: internal thread, flange, butt welding, socket welding, quick installation, etc.! It can be installed on both horizontal and vertical pipes, etc.

4. According to requirements, ball valves can be designed as anti-static structures. Conductive springs are set between the ball and the valve stem, as well as between the valve stem and the valve body, to prevent static sparks from igniting flammable substances and ensure system safety.

5. It has an excellent anti-seepage effect, and the service life of its switch can be 5 to 10 times longer than that of other equipment.


Stainless steel three-piece ball valves are used in the extraction, refining and processing, and pipeline transportation systems of oil, natural gas, coal and ores. In the production of chemical products, medicine and food; In the power generation systems of hydropower, thermal power and nuclear power; In the water supply and drainage, heating and gas supply systems of cities and industrial enterprises; In the irrigation and drainage system of farmland; It is widely applied in metallurgical production systems and is an important mechanical product closely related to production and construction, national defense construction and people's lives. Ball valves are sealed in various pipeline systems to cut off or connect the flow of media. Three-piece internal thread ball valves and butt-welded connection ball valves are suitable for pipelines with a pressure range of PN1.0 to 4.0MPa and a working temperature range of -29 to 180℃(with reinforced polytetrafluoroethylene sealing rings) or -29 to 300℃(with polystyrene sealing rings). It is used to cut off or connect the medium in the pipeline. By choosing different materials, it can be respectively applied to various media such as water, steam, oil products, nitric acid, acetic acid, etc. The predetermined program is delivered to each designated point.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
