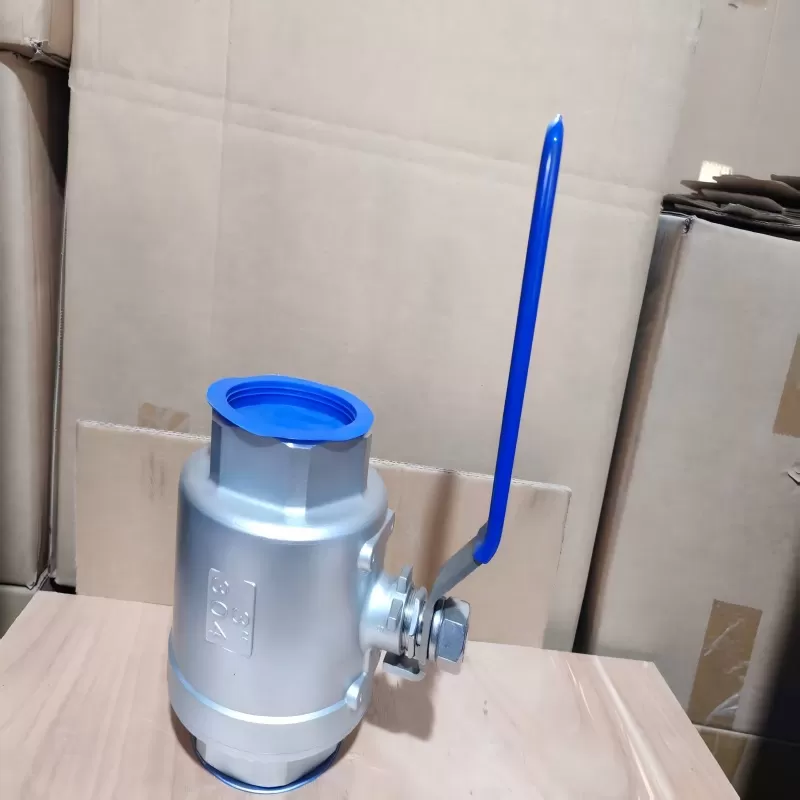

Q11F-16-40P stainless steel two-piece threaded ball valve,two-piece threaded ball valve,threaded ball valve,ball valve

Product Code : VF--QCC-Q293-CU

Nominal diameter DN(mm) 8-150.

Nominal pressure 1.6-6.4 MPa

Applicable stable range -20 to 232℃ to 350℃

Applicable media: water, oil, gas and certain corrosive liquids (W. O. G

Thread type G. NPT. BSPT. BSP. DI259/2999

Drive mode: manual, electric, pneumatic.


Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Product Product Code Purity Size Contact Us
Q11F-16-40P stainless steel two-piece threaded ball valve,two-piece threaded ball valve,threaded ball valve,ball valve VF--QCC-Q293-CU Customized Customize

Product Overview of Q11F-16-40P Stainless Steel Two-Piece Threaded Ball Valve:

Internal thread connection ball valves and butt-weld connection ball valves are suitable for various pipelines with a pressure range of PN1.0 to 4.0MPa and a working temperature range of -29 to 180℃(with reinforced polytetrafluoroethylene sealing rings) or -29 to 300℃(with polystyrene sealing rings), and are used to cut off or connect the medium in the pipeline. The two-piece internal thread ball valve, made of different materials, can be respectively applied to various media such as water, steam, oil products, nitric acid and acetic acid.

Product features of Q11F-16-40P stainless steel two-piece threaded ball Valve:

Internal thread connection ball valves and butt-weld connection ball valves are classified into integral type (one-piece type), two-piece type and three-piece type. The valve body casting adopts the ** technology introduced from Taiwan, with a reasonable structure and beautiful shape. The valve seat adopts an elastic sealing structure, which ensures reliable sealing and easy opening and closing. The valve stem adopts a bottom-mounted structure with an inverted seal. When the valve cavity abnormally increases in pressure, the valve stem will not be pushed out. The connection forms of two-piece and three-piece ball valves also include butt welding (BW) and socket welding (SW), and all can be equipped with international standard ISO support platforms and locking devices. A 90° switch positioning mechanism can be set up. Locking can be added as needed to prevent misoperation. Drive methods: manual, electric, pneumatic.


Internal thread connection ball valves and butt-weld connection ball valves are suitable for various pipelines with a pressure range of PN1.0 to 4.0MPa and a working temperature range of -29 to 180℃(with reinforced polytetrafluoroethylene sealing rings) or -29 to 300℃(with polystyrene sealing rings), and are used to cut off or connect the medium in the pipeline. The two-piece internal thread ball valve, made of different materials, can be respectively applied to various media such as water, steam, oil products, nitric acid and acetic acid.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
