Product Code : VF--QCC-Q193-CU
Drive compressed air 4 to 7bar(handwheel available)
Nominal diameter: 8 to 100mm
Electric control: DC24V, AC220V, 4-20MA
Nominal pressure: 1.6-6.4MPa; Customizable for pressures above 6.4MPa
Applicable temperature: Room temperature PTFE: -29℃ to +150℃
Medium-temperature PPL: -29℃ to +250℃
Connection method: Internal thread
The valve structure is three-piece
The valve body materials are stainless steel 316L, 316, 304 and 304L
The material of the valve balls is stainless steel 316L, 316, 304L and 304
The sealing materials are PTFE and PPL
Applicable media: gas, water, oil, slightly corrosive media, etc
Optional accessories include limit switches, solenoid valves and pressure reducing valves
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

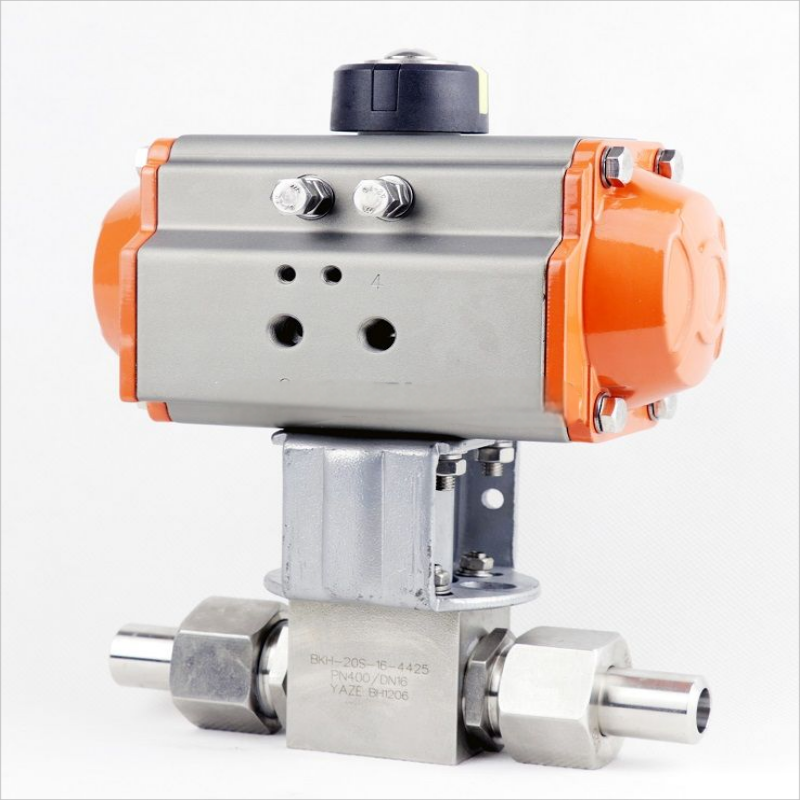

The pneumatic high-pressure ball valve is powered by compressed air. The valve stem drives the valve core to rotate 90° inside the valve body, enabling fully open and fully closed actions. The pneumatic high-pressure ball valve is composed of a pneumatic piston actuator and a high-pressure ball valve. It can be equipped with a valve positioner and input control signals (4-20mADC or 1-5VDC) as an air source to control its operation. It can also be equipped with a travel limit switch, solenoid valve, pressure reducing valve and 0.4-0.7MPa air source to achieve on-off operation, and send out two pairs of passive contact signals to indicate the opening and closing of the valve. Pneumatic high-pressure ball valves are widely used in industrial automatic control systems such as petroleum, chemical engineering, light industry, high-pressure equipment, pharmaceuticals, and papermaking, for remote centralized control or local control.
Pneumatic high-pressure ball valves are widely used in industrial automatic control systems such as petroleum, chemical engineering, light industry, high-pressure equipment, pharmaceuticals, and papermaking, for remote centralized control or local control.
