Product Code : VF--QCC-Q192-CU
Pneumatic actuator Double-acting, single-acting normally closed, single-acting normally open
The attachment is optional; Reversing solenoid valve, limit switch, air filter pressure reducing valve, electrical positioner, handwheel mechanism
Voltage AC220V AC110V AC380
DC12V DC24V DC110V
Nominal diameter DN10-400mm
Nominal pressure 1.6 MPa to 6.4 MPa
Applicable temperature PTFE:-30 to +180℃, PPL :-30 to 250℃
Connection method Threaded type, welded type, clamp quick-installation type
Valve body structure Type A
Valve body material 304, 316, 316L
Valve plate material 304, 316, 316L
Valve seat lining PTFE, PPL
Applicable medium Steam, liquid water, gas, etc
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

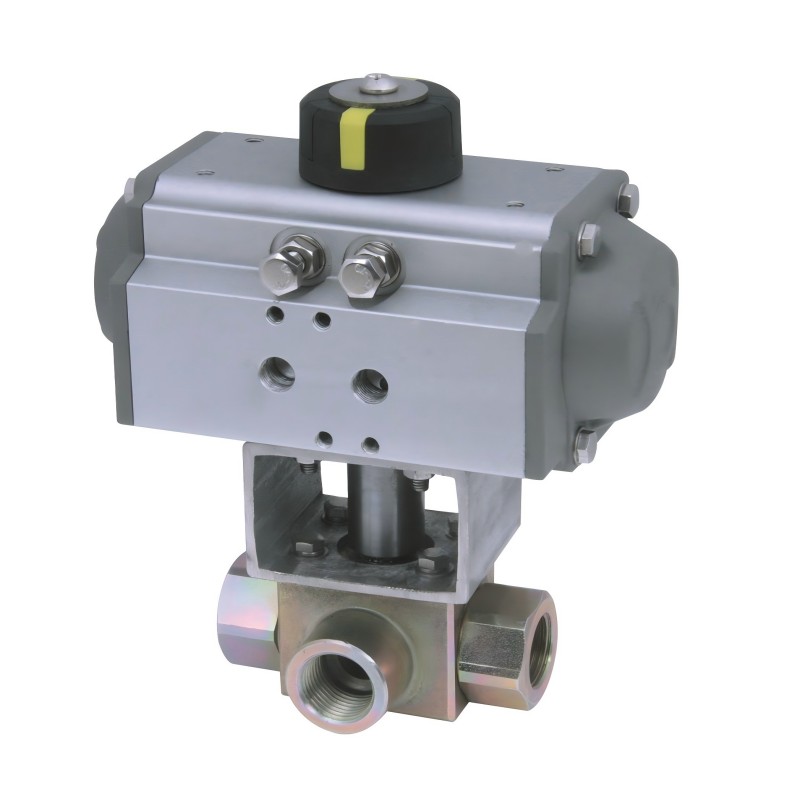

The pneumatic three-way ball valve is composed of an internal thread three-way ball valve and a pneumatic actuator. It is small in size and has a simple structure. It is divided into L-type and T-type, and can achieve the functions of reversing, diverting, merging and mixing. The four-seat sealed three-way ball valve features an elegant design and a compact and reasonable structure. It can not only switch the flow direction of the medium but also connect the three channels with each other. At the same time, it can close any one channel to connect the other two, flexibly controlling the confluence or diversion of the medium in the pipeline.
Features of threaded pneumatic three-way ball valve
Solid ball core, with sufficient materials. Products of the same specification are heavier than those of their peers.
Fire prevention, treatment, valve stem explosion-proof discharge device to ensure system safety.
The high-platform design complies with the ISO5211 standard and can be directly connected to ISO5211 standard actuators. Good interchangeability
The valve body cast with silica sol has a compact structure and high dimensional accuracy. The appearance is exquisite.
The pneumatic three-way ball valve is composed of an internal thread three-way ball valve and a pneumatic actuator. It is small in size and has a simple structure. It is divided into L-type and T-type, and can achieve the functions of reversing, diverting, merging and mixing. The four-seat sealed three-way ball valve features an elegant design and a compact and reasonable structure. It can not only switch the flow direction of the medium but also connect the three channels with each other. At the same time, it can close any one channel to connect the other two, flexibly controlling the confluence or diversion of the medium in the pipeline.
