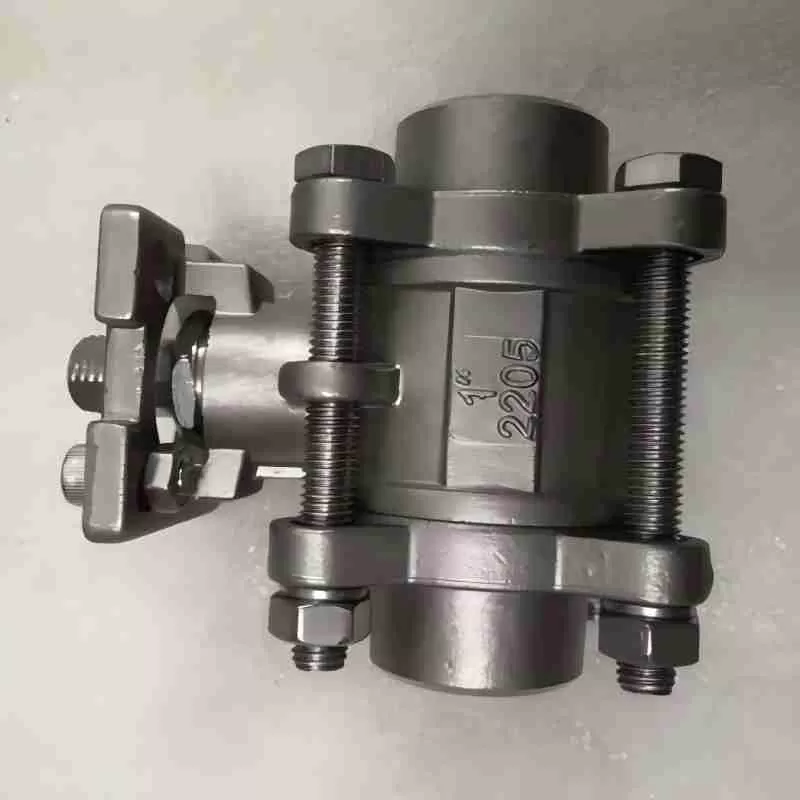

2205 high-platform three-piece welded ball valve,high-platform three-piece welded ball valve,2205welded ball valve,ball valve

2205 high platform three-piece welded ball valve, designed in accordance with ISO5211 standard high platform, can be equipped with pneumatic and electric, model Q61F, Q661F, Q961PEEK, three-piece structure, pressure 1.0MPa-4.0MPa, DN8-DN100. The valve body, ball and valve stem are all made of 2205 duplex steel, resistant to chloride ion corrosion and suitable for seawater.

2205 duplex steel is a type of stainless steel where ferrite and austenite each account for approximately 50%, and the content of the smaller phase should be at least 30%. It has significantly improved resistance to intergranular corrosion and weldability, with high strength and notably enhanced resistance to intergranular corrosion and chloride stress corrosion. Duplex stainless steel has excellent resistance to pitting corrosion and is also a nickel-saving stainless steel.

Pneumatic actuators include spring-return single-acting pneumatic actuators and spring-free double-acting pneumatic actuators. When the valve is required to be fully open or closed in case of a fault, a spring-type single-acting pneumatic valve (reset by the restoring tension of the spring) is provided. When it is required to remain in its original position in case of a fault, a spring-free double-acting pneumatic valve is provided.

Pneumatic accessories include: ASCO solenoid valves, explosion-proof limit switches, YTC, PG, Siemens positioners, manual devices, solenoid valves (single control, double control), limit switches, valve position switches, lock position valves, quick release valves, etc.

2205 high platform three-piece welded ball valve, designed in accordance with ISO5211 standard high platform, can be equipped with pneumatic and electric, model Q61F, Q661F, Q961PEEK, three-piece structure, pressure 1.0MPa-4.0MPa, DN8-DN100. The valve body, ball and valve stem are all made of 2205 duplex steel, resistant to chloride ion corrosion and suitable for seawater.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
