Product Code : VF--QCC-Q290-CU
Specification parameters
Pressure rating: PN1.0-4.0 mpa, Class150-300Lb
Nominal diameter: DN8-DN50 1/41/2"-12"-21/2"-12"
Drive mode: handle, pneumatic, electric
Corresponding titanium ball valve model: Q11F-10Ti, Q11F-16Ti, Q11F-25Ti, Q11F-40Ti, Q11F-150Lb(Ti), Q11F-300Lb(Ti), Q61F- 10A, Q61F-16A, Q61F-25A, Q61F-40A, Q61F-150Lb(A), Q61F-300Lb(A)
Applicable medium: Oxidizing corrosive medium
Technical Specification
Connection methods: internal and external threads, socket welding, butt welding
Thread standards: BSP, NPT, DIN, GB
Test standards: JB9092, GB/T13927, API6D, API598
Main material
TA1, TA2, TA10, Gr2, Gr3
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

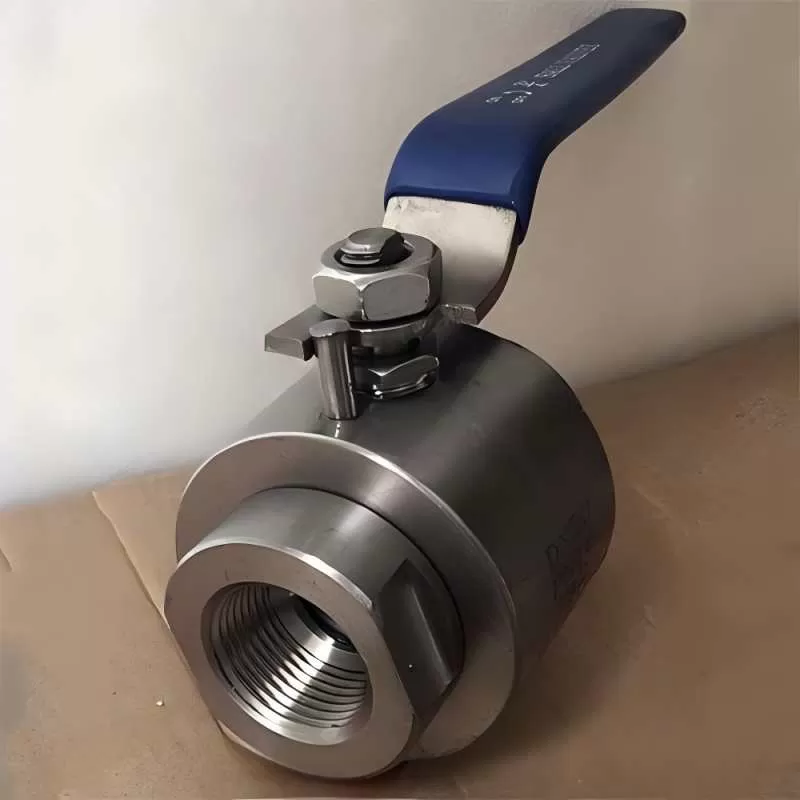

Threaded titanium ball valves and butt-welded connection ball valves are classified into integral type, two-section type and three-section type. The casting of the internal thread titanium ball valve body adopts the advanced technology introduced from Taiwan, with a reasonable structure and beautiful appearance. The valve seat adopts an elastic sealing structure, which is reliable in sealing and easy to open and close. The valve stem adopts a bottom-mounted structure with an inverted seal. When the valve cavity abnormally increases in pressure, the valve stem will not be pushed out.
A 90° switch positioning mechanism can be set up, and a lock can be added as needed to prevent misoperation. Threaded titanium ball valves and butt-welded titanium ball valves are suitable for various pipelines with a pressure range of PN1.0 to 4.0MPa and a working temperature range of -29 to 180℃(with reinforced polytetrafluoroethylene sealing rings) or -29 to 300℃(with polystyrene sealing rings), used to cut off or connect the medium in the pipeline
Threaded titanium ball valves and butt-welded titanium ball valves are suitable for pipelines with a pressure range of PN1.0 to 4.0MPa and a working temperature range of -29 to 180℃(with reinforced polytetrafluoroethylene sealing rings) or -29 to 300℃(with polystyrene sealing rings), and are used to cut off or connect the medium in the pipeline
