Product Code : VF--QCC-Q272-CU
Product Model: Q661F
Nominal diameter: DN10-DN100
Nominal pressure: PN16-PN160
Operation mode: Pneumatic
Connection method: Welding.
Valve function: Cut-off
Operating temperature (℃) : 180
Medium used: Seawater
Valve structure: Floating ball
Valve body material: 2205 duplex steel
Valve core material: 2205
Valve stem material: 2205
Valve seat seal: PTFE
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

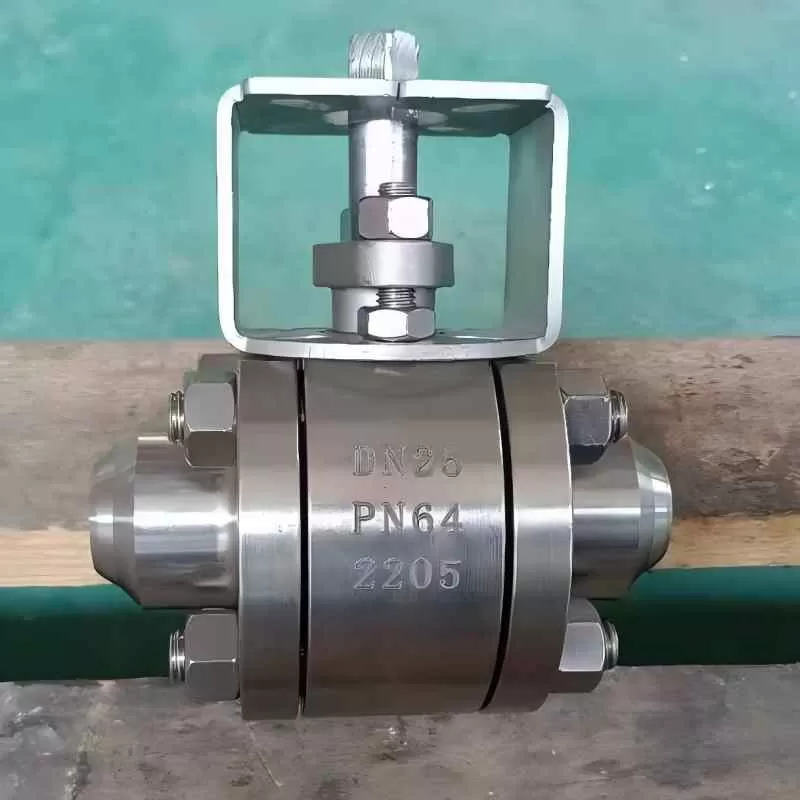

2205 forged duplex steel welded ball valve, model Q61F, Q661F, Q961F. The valve body, ball and valve stem are all forged. The material has a high density and no defects such as sand holes and gas holes found in castings. 2205 forged duplex steel welded ball valve, which can be of three-piece or two-piece structure, has a nominal diameter of DN10-DN100, a nominal pressure of PN16-PN160, and meets the American standard of 150LB-900LB.
2205 Duplex Stainless Steel (abbreviated as DSS), ferritic-austenitic (duplex) stainless steel, is characterized by low carbon content, high chromium, high nickel, high molybdenum and high nitrogen. It combines many of the most beneficial properties of ferrite and austenite. Due to the high content of chromium and molybdenum in this steel, it has excellent resistance to pitting corrosion, crevice corrosion and uniform corrosion, as well as a high resistance to stress corrosion cracking. Moreover, its mechanical strength is also very high.
2205 Duplex Stainless Steel (abbreviated as DSS), ferritic-austenitic (duplex) stainless steel, is characterized by low carbon content, high chromium, high nickel, high molybdenum and high nitrogen. It combines many of the most beneficial properties of ferrite and austenite. Due to the high content of chromium and molybdenum in this steel, it has excellent resistance to pitting corrosion, crevice corrosion and uniform corrosion, as well as a high resistance to stress corrosion cracking. Moreover, its mechanical strength is also very high.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
