Product Code : VF--ZCC-223-CU

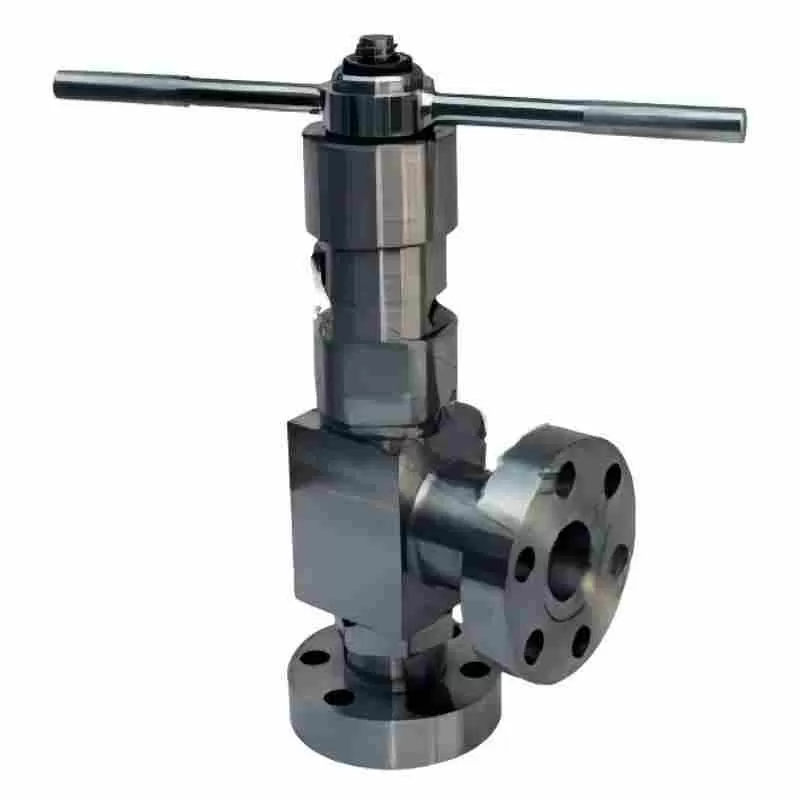

Product Name: High-pressure Angle Throttle Valve
Product Model: L44Y
Nominal diameter: DN3 - DN100 \ nStructural form: Cut-off type
Nominal pressure: 16.0MPa to 32.0MPa
Connection method: Flange
Applicable temperature: -29 ° C to +550 ° C
Drive mode: handwheel, bevel gear, pneumatic, electric
Valve body material: WCB, cast steel, carbon steel, stainless steel \ nStandards: National standard GB, German DIN, American API, ANSI
Applicable media: water, oil, steam, gas, liquid
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
The opening and closing part of the L44Y high-pressure Angle throttle valve is a cylindrical valve disc. The sealing surface is flat or conical, and the valve disc moves linearly along the centerline of the fluid. The high-pressure Angle throttle valve is allowed for regulation and throttling. The pipeline is suitable for various working conditions in the petroleum, chemical, pharmaceutical, fertilizer, power and other industries with nominal pressure ranging from 16.0MPa to 32.0MPa and working temperature from -29 to 550℃, for cutting off or connecting the medium in the pipeline. The driving methods include manual, gear transmission, electric, pneumatic, etc.
Product Features
It has a simple structure and is relatively convenient for manufacturing and maintenance
2. The working stroke is small and the opening and closing time is short
3. It has good sealing performance, low friction between sealing surfaces and a long service life
The opening and closing part of the L44Y high-pressure Angle throttle valve is a cylindrical valve disc. The sealing surface is flat or conical, and the valve disc moves linearly along the centerline of the fluid. The high-pressure Angle throttle valve is allowed for regulation and throttling. The pipeline is suitable for various working conditions in the petroleum, chemical, pharmaceutical, fertilizer, power and other industries with nominal pressure ranging from 16.0MPa to 32.0MPa and working temperature from -29 to 550℃, for cutting off or connecting the medium in the pipeline. The driving methods include manual, gear transmission, electric, pneumatic, etc.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
