Product Code : VF--ZCC-225-CU

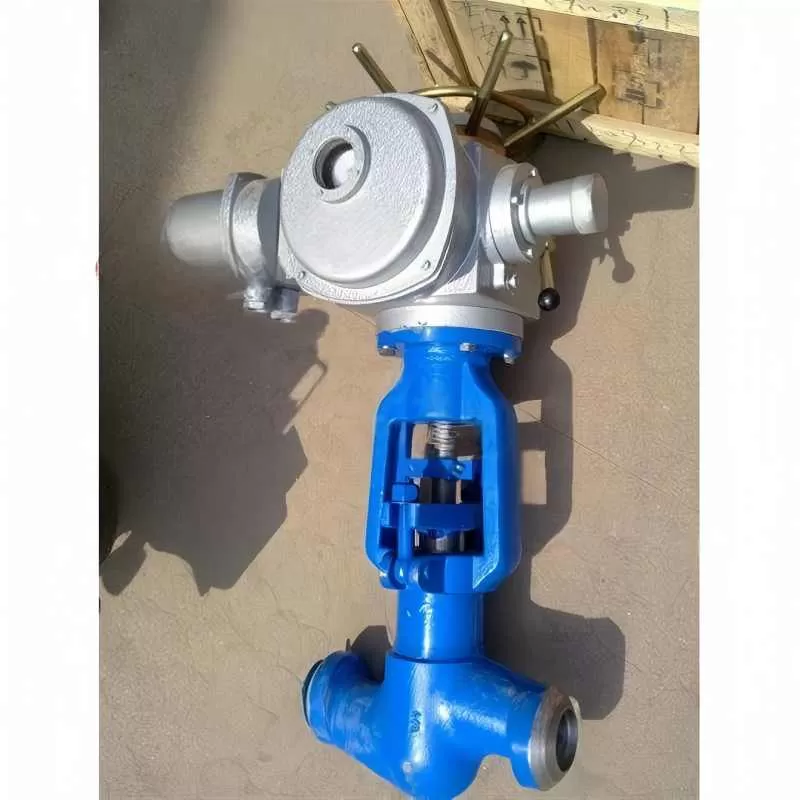

Product Name: Electric High-pressure Stop Valve
Product Model: J961Y
Nominal diameter: DN15 - DN300
Structural form: Cut-off type
Nominal pressure: 1.6MPa to 32.0MPa
Connection methods: welding, flange
Applicable temperature: -29 ° C to +570 ° C
Drive mode: handwheel, bevel gear, electric
Valve body material: WCB, carbon steel, chromium-molybdenum-vanadium steel, stainless steel
Manufacturing standards: National standard GB, German DIN, American API, ANSI
Applicable media: water, oil, steam, gas
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
The J961Y electric high-pressure stop valve is suitable for pipelines of various systems in petroleum, chemical, water conservancy and thermal power stations with nominal pressure PN20 ~ 32MPa and P54/100V-P57/170V, and working temperature ≤540℃ (among which the working temperature of P57/170V is 570℃), to cut off or connect the medium in the pipeline. The applicable media are: water, oil products, steam, etc. The operation modes include: manual, gear transmission, electric, etc.
Main features and uses
The connection between the valve and the pipeline adopts a welded structure.
2. The sealing surface is not prone to wear or scratches, has good sealing performance and a long service life.
3. Compact structure, good opening and closing performance, small height and convenient maintenance.
4. It is applicable to water, steam and oil pipelines and features high temperature and high pressure resistance
The J961Y electric high-pressure stop valve is suitable for pipelines of various systems in petroleum, chemical, water conservancy and thermal power stations with nominal pressure PN20 ~ 32MPa and P54/100V-P57/170V, and working temperature ≤540℃ (among which the working temperature of P57/170V is 570℃), to cut off or connect the medium in the pipeline. The applicable media are: water, oil products, steam, etc. The operation modes include: manual, gear transmission, electric, etc.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
