Product Code : VF--ZCC-216-CU

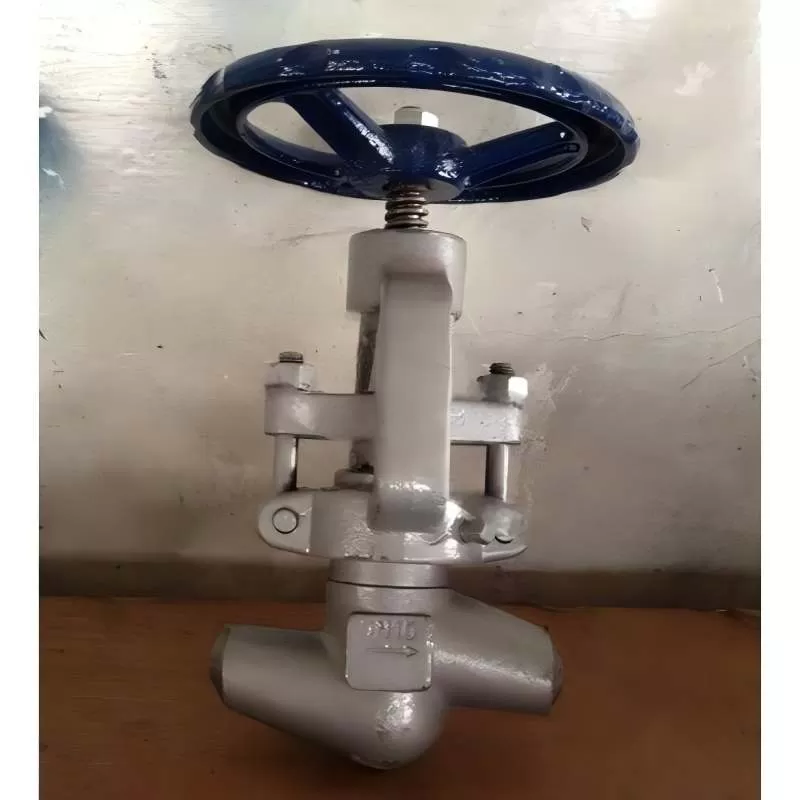

Product Name: High-pressure Steam Stop Valve
Product Model: J61Y
Nominal diameter: DN15 - DN300
Structural form: Cut-off type
Nominal pressure: 1.6MPa to 32.0MPa
Connection methods: welding, flange
Applicable temperature: -29 ° C to +570 ° C
Drive mode: handwheel, bevel gear, electric
Valve body material: WCB, carbon steel, chromium-molybdenum-vanadium steel, stainless steel
Manufacturing standards: National standard GB, German DIN, American API, ANSI
Applicable media: water, oil, steam, gas
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
The J61Y high-pressure steam stop valve is suitable for pipelines in various systems of petroleum, chemical, water conservancy and thermal power stations with nominal pressures of PN20 ~ 32MPa and P54/100V-P57/170V, and working temperatures of ≤540℃ (among which the working temperature of P57/170V is 570℃), to cut off or connect the medium in the pipeline. The applicable media are: water, oil products, steam, etc. The operation modes include: manual, gear transmission, electric, etc.
Main features and uses
The connection between the valve and the pipeline adopts a welded structure.
2. The sealing surface is not prone to wear or scratches, has good sealing performance and a long service life.
3. Compact structure, good opening and closing performance, small height and convenient maintenance.
4. It is applicable to water, steam and oil pipelines and features high temperature and high pressure resistance.
Manufacturing acceptance technical standards
The technical conditions for manufacturing acceptance shall be in accordance with the provisions of JB/T3595 or E101.
2. The structural length of the valve shall comply with the provisions of ANSI B16.10 or E101.
3. The welding bevel of the valve body shall be in accordance with the provisions of ANSI B16.25 or the dimensions provided by the user
The J61Y high-pressure steam stop valve is suitable for pipelines in various systems of petroleum, chemical, water conservancy and thermal power stations with nominal pressures of PN20 ~ 32MPa and P54/100V-P57/170V, and working temperatures of ≤540℃ (among which the working temperature of P57/170V is 570℃), to cut off or connect the medium in the pipeline. The applicable media are: water, oil products, steam, etc. The operation modes include: manual, gear transmission, electric, etc.
