Product Code : VF--ZCC-214-CU
Product Name: Jacketed Stop Valve
Product Model: BJ45W
Nominal diameter: DN15 - DN200
Structural form: Cut-off type
Nominal pressure: 2.5MPa to 4.0MPa
Connection method: Flange
Applicable temperature: 29 ° C to +550 ° C
Drive mode: Handwheel, bevel gear
Valve body material: WCB, cast steel, carbon steel, stainless steel 304/316/316L
Manufacturing standards: National standard GB, German DIN, American API, ANSI
Applicable medium: Liquids that are prone to crystallization
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

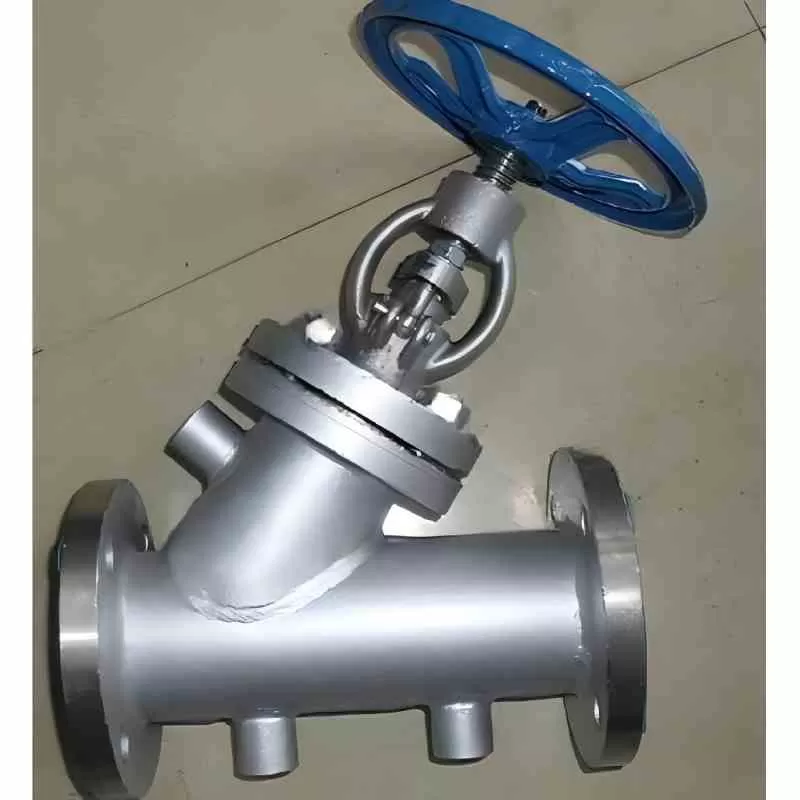

The insulated jacket of the BJ45W jacketed stop valve is welded between the two flanges of the valve. Two connection ports of the insulated jacket are provided on the side and bottom of the valve. The DC insulated stop valve is particularly suitable for pipelines in the chemical and fertilizer industries. Steam embedded in the jacket can prevent the medium from crystallizing. It is widely used in various systems such as petroleum, chemical engineering, metallurgy and pharmaceuticals to transport high-viscosity media that solidify at room temperature.
Standard specification
1. Design and manufacture in accordance with GB12234-89
2. The structural length shall comply with GB12221-89
3. The flange dimensions shall comply with JB/T79-94 / JB/779-94
4. Valve inspection and testing shall be in accordance with GB13927
The insulated jacket of the BJ45W jacketed stop valve is welded between the two flanges of the valve. Two connection ports of the insulated jacket are provided on the side and bottom of the valve. The DC insulated stop valve is particularly suitable for pipelines in the chemical and fertilizer industries. Steam embedded in the jacket can prevent the medium from crystallizing. It is widely used in various systems such as petroleum, chemical engineering, metallurgy and pharmaceuticals to transport high-viscosity media that solidify at room temperature.
