Product Code : VF--ZCC-WS21-CU

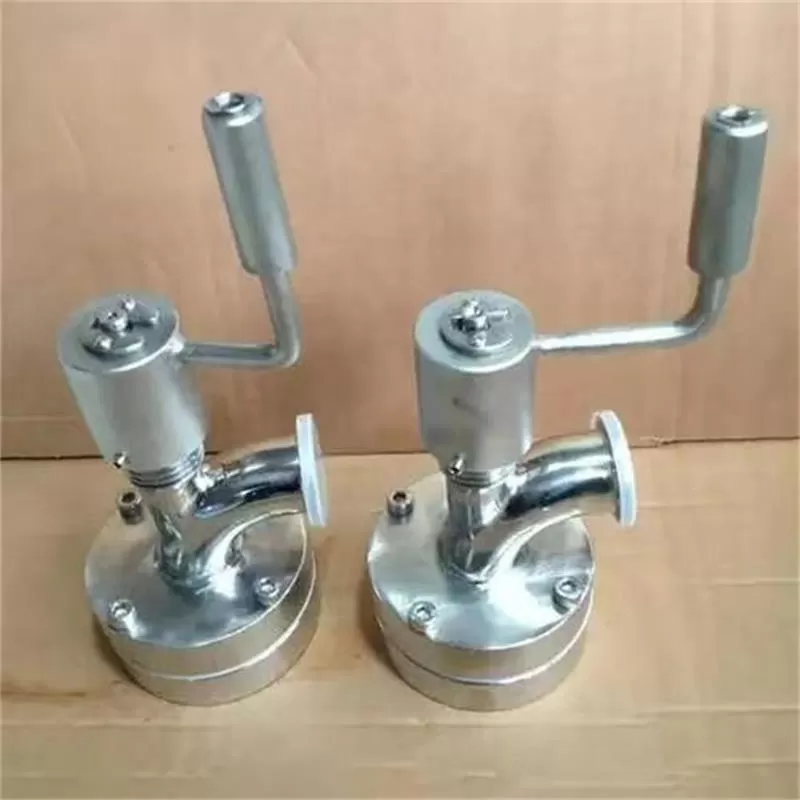

Sanitary grade manual tank bottom discharge valve
Product diameter: DN25-DN100
Product pressure: 10bar
Product material: 304/316L
Connection types: clamp, welding, flange, tank bottom flange, DIN 3A INCH
Product sealing: EPDM, FPM, HNBR
Structural types: top-spreading type, bottom-spreading type
Drive mode: manual, pneumatic, electric
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Details
Youdaoplaceholder0 Sanitary manual tank bottom discharge valve is a valve specifically designed for tank bottom installation, mainly used in highly hygienic industries such as dairy, food processing, beverage production, pharmaceuticals and fine chemicals. Its main function is to empty the container material to ensure that the material does not remain in the valve chamber, and at the same time it is designed with the feature that the valve seat opens into the container to avoid accidental opening of the valve due to pipe overpressure
Characteristics
Manual operation: This valve is a single-seat valve operated manually, which is simple and intuitive to operate.
Tank bottom installation: Specifically installed at the bottom of the tank, it facilitates the emptying of container materials and prevents material retention in the valve cavity.
Safety design: The feature of the valve seat opening into the container has been designed to prevent the valve from accidentally opening due to overpressure in the pipeline. There are two designs, 45° and 90°, and they can be interchanged between pneumatic and manual operations to meet different needs.
Multiple specifications: The specifications range from DN25/1" to DN100/4", suitable for tanks of different capacities.
Wide temperature adaptability: The temperature range is -20℃ to 150℃, depending on the sealing material, to adapt to different working environments.
High pressure resistance: Can withstand a pressure of 10bar.
High-quality materials: Materials such as ASTM 304/1.4301 and 316L/1.4404 are adopted, which have strong corrosion resistance.
Multiple sealing options: Sealing materials include EPDM, FPM, and HNBR for selection.
Fine surface treatment: Ra≤0.6μm, meeting hygiene standards.
Application field
Youdaoplaceholder0 Dairy industry : In the dairy industry, the sanitary manual tank bottom discharge valve ensures the safe storage and discharge of products such as milk and guarantees the hygiene standards of the production process
Youdaoplaceholder0 Food processing : In food processing, this valve ensures precise control of various food materials and guarantees hygiene standards during the production process
Youdaoplaceholder0 Beverage production : In beverage production, the sanitary manual bottom discharge valve provides reliable support for the making of high-quality beverages, ensuring hygiene and quality control in the production process
Youdaoplaceholder0 Pharmaceutical industry : In the pharmaceutical industry, this valve meets strict process requirements and hygiene standards, ensuring precise material discharge and aseptic operation during the drug production process
Youdaoplaceholder0 Fine chemicals : In the field of fine chemicals, the sanitary manual tank bottom discharge valve meets strict process requirements and hygiene standards, ensuring the smooth progress of the production process
