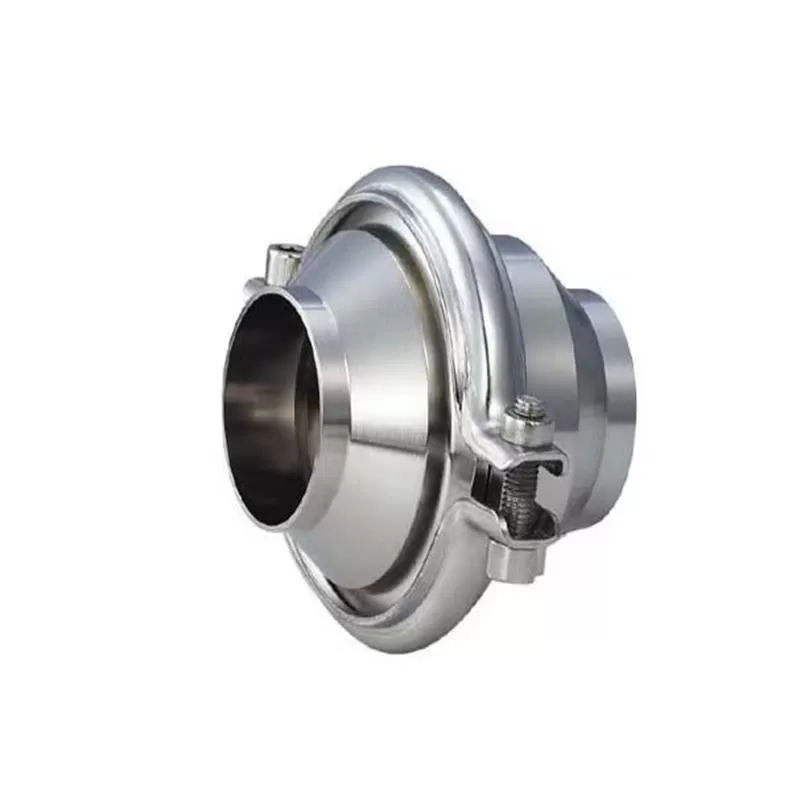

Sanitary check valve，Sanitary grade valve，Check valve

Product Details

Youdaoplaceholder0 Sanitary check valve ‌ is a type of one-way valve specifically designed for sanitary piping systems. It is mainly used in the food, beverage, pharmaceutical and other industries to control the unidirectional flow of media, ensuring the stability of production processes and product quality. Its design and manufacturing standards are strict, and the material selection is meticulous to meet high hygiene standards and cleanliness requirements

Characteristics

The operating principle is reliable: When the pressure of the fluid is greater than the suction pressure of the spring, the valve opens. When the two pressures are equal, the valve closes. A stronger pressure difference can also close the valve, ensuring the uniqueness of the fluid flow direction.

Multiple specifications are available: The specifications range from DN25/1" to DN100/4", catering to different pipe sizes and flow requirements.

Crafted from high-quality materials: The external structure and shaft are made of AISI 316L/304 material, and the spring is also made of AISI 304 material, featuring excellent corrosion resistance and hygiene performance.

Compliance with hygiene standards: The gasket is made of EPDM, meeting the FDA 117.2600 standard to ensure safety in contact with fluids. Meanwhile, gaskets are also available in materials such as NBR, FPM (fluororubber), or PTFE, and they comply with the FDA117.2600 standard (optional).

Fine surface treatment: The surface treatment Ra is ≤0.6 μm, meeting high hygiene requirements.

Rich connection methods: Welding, threading, clamping, DIN, SMS, RJT, IDF, ISO, 3A and other connection methods can be adopted, which is convenient for connection with different pipeline systems.

Moderate nominal pressure: The nominal pressure is 10 bar, meeting the requirements of most working conditions.

Wide operating temperature range: The operating temperature is from -10℃ to +130℃ (EPDM), depending on the sealing material, which can adapt to different working environment temperatures.

Application field

Food industry

In the food INDUSTRY, sanitary check valves are widely used in the production process of milk, juice, BEER and OTHER products to prevent fluid backflow and ensure product SAFETY and hygiene ‌

Beverage industry

Sanitary check valve for carbonated beverage, juice beverage and other production line control to prevent gas backflow and liquid backflow to ensure product quality ‌

Pharmaceutical industry

Sanitary check valves are used in pharmaceutical processes to control drug delivery, prevent cross-contamination, and ensure the quality and safety of drugs ‌

Biotechnology industry

Sanitary check valve used to control fluid direction, prevent contamination, ensure product quality and safety ‌ in biologics, vaccine PRODUCTION process

The chemical industry and other industries

Sanitary check valves in the chemical industry, due to their excellent corrosion and wear resistance, are widely used in various medium demands ‌

In addition, they are also used in the oil, power and other industries to prevent the backflow of medium ‌
