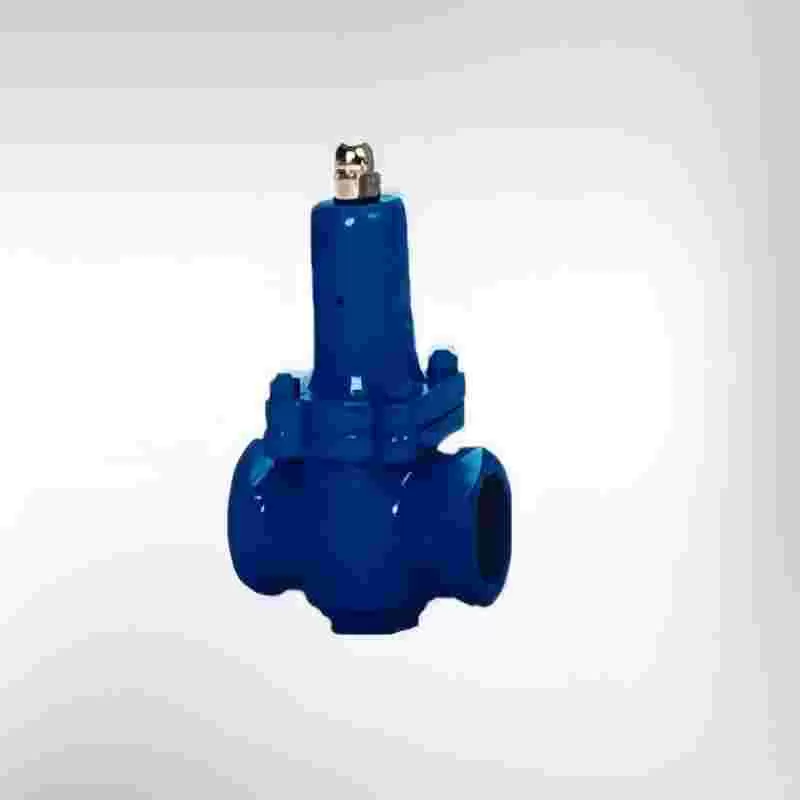

Y110 Y116X pressure reducing and stabilizing valves,pressure reducing and stabilizing valves

Working principle

The main body of the Y110, Y42SDY42XY410 and Y416 series pressure reducing and stabilizing valves is composed of valve body, spring cover, plug, valve core, piston sleeve, valve seat, limit nut and rubber diaphragm and other parts. The upper valve is of the normally open spring diaphragm type. The rear and rear of the valve are adjustable. By changing the throttling port, pressure loss is caused to achieve pressure reduction. This valve is of the top inlet and bottom outlet type. When the pressure after the valve is fed back to the rubber diaphragm and the valve core through the pressure feedback mechanism, the valve disc and the throttling port are kept in the corresponding positions. When the set value is reached, the throttling port valve closes to reduce the static pressure. When the pressure after the valve is lower than the set value, the pressure of the spring presses down on the valve core and opens the throttling port again to increase the pressure, ensuring that the pressure after the valve does not exceed the set value. Since the ratio of the P1 acting surface to the P2 acting surface is 1:10, a force of 0.1MPa after the valve can balance the force of 1MPa before the valve, thus having a pressure stabilizing effect.

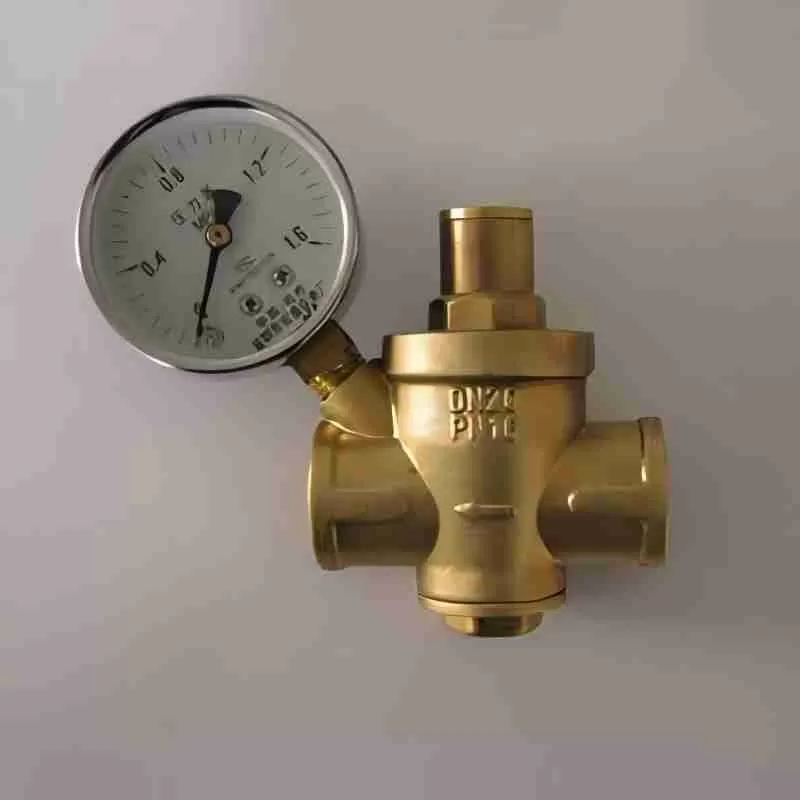

The Y110 pressure reducing and stabilizing valve is a diaphragm type or piston type pressure regulating valve. This valve is a adjustable pressure reducing valve. The pressure after the valve can be adjusted as needed before being put into use. After being put into use, the pressure after the valve will always be reduced to and stabilized at the set level, and will not change due to fluctuations in the pressure before the valve or the flow process. The valve is made of high-quality materials (the diaphragm is a nylon reinforced rubber membrane sheet), with reliable performance and a long service life.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
