Product Code : VF--ZSCC-ZS9-CU

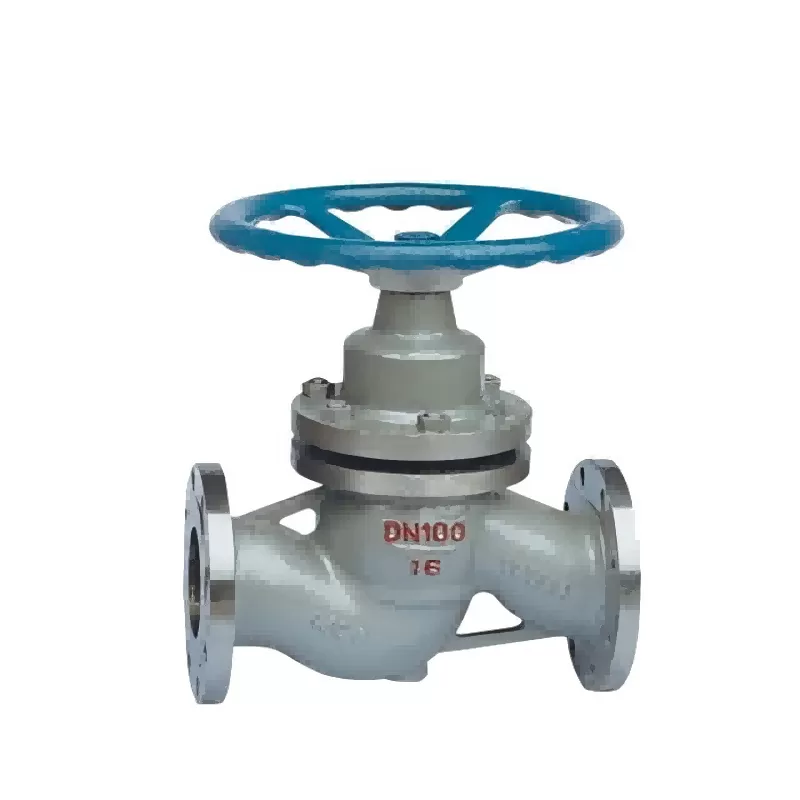

Product model: UJ41H plunger globe valve
Product diameter: 15~400mm
Product pressure: 1.6-16MPa
Applicable media Water, steam, oil (C) Nitric acid (P), acetic acid (R)
Applicable temperature (℃) ≤425 ≤200
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Introduction:
Interference match is adopted between the plunger and the seal in the valve, and the lateral force generated by the compression of the sealing ring is sealed with the hole surface of the valve body and the outer circle of the plunger by adjusting the pre-tightening force of the middle flange bolt, so as to ensure the tightness of the valve
UJ41H/F type plunger valve Features:
1, in the valve plunger and seal using interference fit, by adjusting the flange bolt preload, so that the side force generated by the compression of the sealing ring and the valve body hole surface and plunger outer circle seal, so as to ensure the sealing of the valve, eliminate external leakage
2, because the sealing ring is made of non-toxic new sealing materials with strong resilience and high wear resistance, the sealing is reliable and durable, thus improving the service life of the valve
3, the valve combined with the plunger valve no leakage advantages and the characteristics of the globe valve opening and closing fast, become a novel structure, a wide range of new varieties
UJ41H/F type plunger valve implementation standard:
Design standard: GB12233-89, 12235-89
Structure length: GB12221-89
Flange connection: GB79-59, GB113.1 ~ 9113.26
Test and inspection: GB13927
Because the sealing ring is made of new non-metallic materials, it has the performance of enduring high temperature and high pressure without losing elasticity, and the contact area between the plunger and the sealing ring is large, moreover, the sealing ring system has good mixed material performance, so the sealing is reliable and durable. Mainly used in metallurgy, electricity industry, chemical industry, oil refining, chemical fertilizer, light industry, food and other industries.
