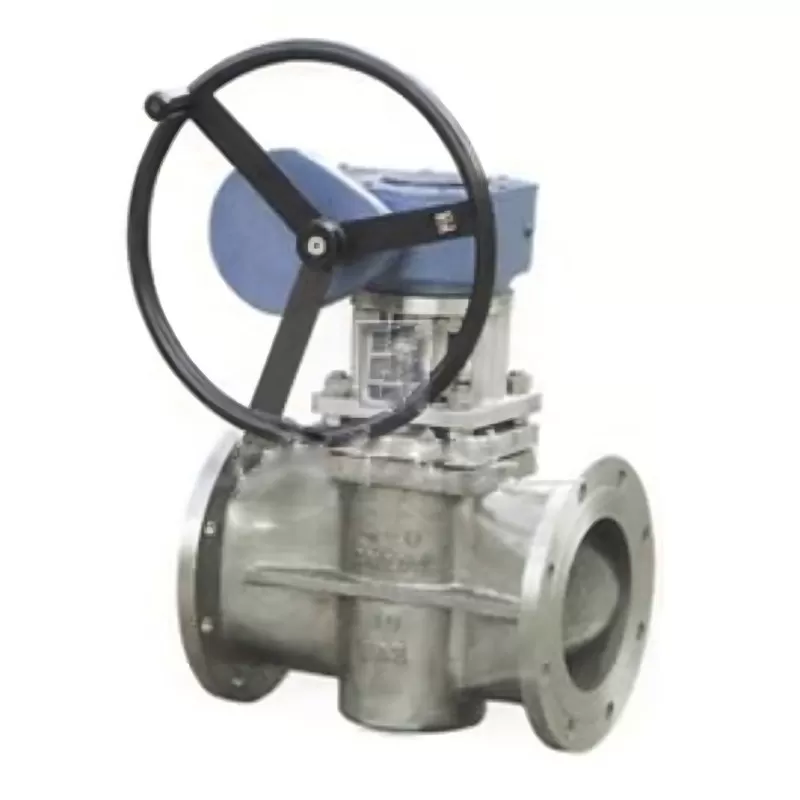

Product Code : VF--XCC-X31-CU
Specification parameter
Pressure rating: PN1.0-10.0MPa CLASS150-600Lb
Nominal diameter: DN15-DN300 1/2"-12"
Driving mode: manual, worm gear, pneumatic, electric
Applicable medium: oxidizing corrosive medium.
Fluid temperature -≤180℃
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Features:
1. The inlet and outlet window of the valve body is designed as a double-channel groove sealing ring structure. During the rotation of the cock, the sealing specific pressure between the sealing pairs gradually changes until it reaches the fully open or fully open position, which produces enough sealing specific pressure and is not easy to leak.
2, soft seal titanium plug valve double groove sealing ring, both can make the soft seal bushing, stable in the valve body does not produce migration, but also can absorb the small deformation of the bushing caused by the change in temperature difference, while the strong extrusion between the bushing and the cock, in order to improve the service life of the sealing surface.
3. The upper part of the plug shaft adopts a unique PTFE (or reinforced PTFE) diaphragm and wedge pad combination with the adjusting gasket, which can adjust the specific pressure of the sealing surface, so that the plug can rotate flexibly, and may ensure the sealing of the inlet and outlet end and the middle flange connection end.
4. Soft seal titanium plug valve PTFE seal bushing, according to the use of temperature and working medium with different fillers, good lubrication, long life.
Specification parameter
Technical specification
Design standard: GB/T12240, API599
Structure length: GB/T12221, ASME B16.10
Connection flange: HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Test standards: JB/T9092, GB/T13927, API598
Bulk material
Valve body: TA1, TA2, TA10, Gr2, Gr3
Cock: TA1, TA2, TA10, Gr2, Gr3
Seal bushing: PTFE, RPTFE, PPL
