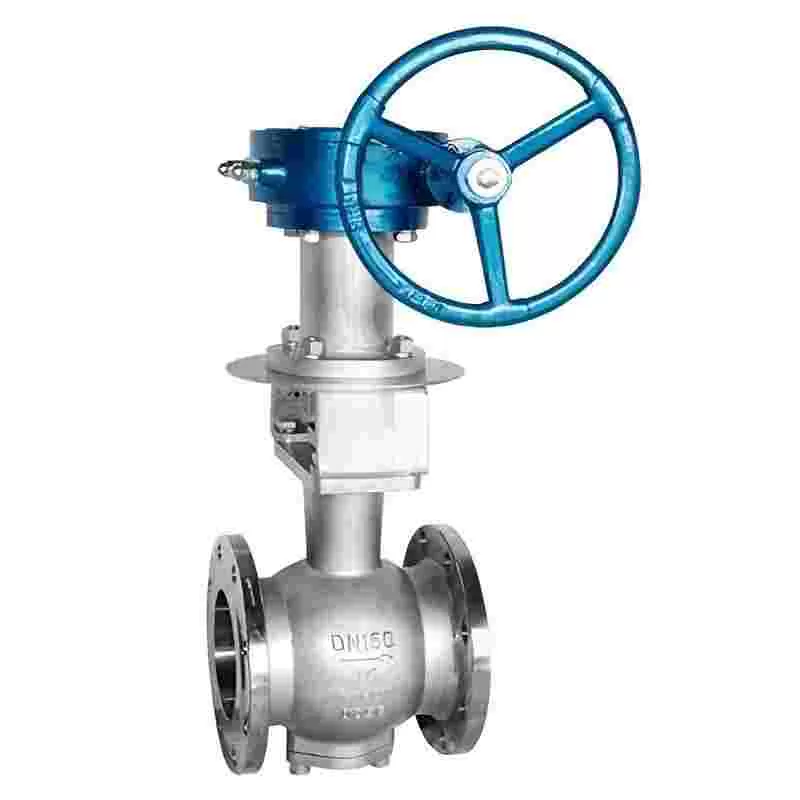

Inconel ball valve,Inconel valves

Inconel ball valve has the advantages of compact structure, light weight, sensitive action, small pressure drop loss, large valve capacity, accurate flow characteristics, convenient disassembly and so on. Pneumatic ball valve is a ball valve with a pneumatic actuator. The execution speed of the pneumatic actuator is relatively fast, and the fastest switching speed is 0.05 seconds/time, so it is usually called the pneumatic fast cutting ball valve. Pneumatic ball valves are usually configured with various accessories, such as solenoid valves, air source processing triplexes, limit switches, positioners, control boxes, etc., to achieve local control and remote centralized control, in the control room can control the valve switch, do not need to go to the scene or high altitude and dangerous to bring manual control, to a large extent, saving human resources and time and safety.

The control part produced by our company can be divided into: pneumatic intelligent and electric intelligent two categories, ball valve body can be divided into: hard seal ball valve, soft seal ball valve, V-type ball valve, O-type ball valve, fixed ball valve, floating ball valve, three-way L/T ball valve and other categories. Connection mode: butt welding type, flange type, sandwich type. It can also be customized according to user requirements. Ball valves made of special materials according to different materials, the use of advanced technology to produce high-quality and safe valves. Suitable for high temperature, strong corrosion environment. According to the requirements of different working conditions, different forms of valve bodies can be selected to achieve the best effect of fluid control.

First, Incornel ball valve product features:

1, the flow resistance is small, the ball valve is one of the least fluid resistance of all valves, even if it is a reduced diameter ball valve, the fluid resistance is quite small.

2, good sealing performance. Ball valve seat (seal ring) is generally made of polytetrafluoroethylene and other elastic materials, easy to ensure sealing, and the sealing force of ball valve increases with the increase of medium pressure.

3. Valve stem seal is reliable. When the ball valve is opened and closed, the valve stem only rotates 90°, so the packing seal of the valve stem is not easy to be damaged, and the sealing force of the valve stem reverse seal increases with the increase of the medium pressure.

4, the opening and closing of the ball valve only 90° rotation, so it is easy to achieve automatic control and remote control, ball valve can be configured with electric devices, pneumatic devices, hydraulic devices.

Nickel-based corrosion and heat resistant alloys are commonly used in high temperature applications. Inconel material is suitable for all wet raw materials so corrosive gases can be measured. Nickel alloy material suitable for extreme environment service, Inconel600 cold and hot processing properties, low temperature mechanical properties, cold and hot fatigue properties. High strength at 650℃, good formability, easy to weld. Suitable for heat treatment and chemical processing industrial equipment. Inconel718 alloy has the characteristics of high yield strength, good plasticity, good welding and forming properties, high corrosion resistance, oxidation resistance and radiation resistance below 650℃. The microstructure and properties of the alloy are stable in the temperature range of -253℃ ~ 700℃.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
