Product Code : VF--CHDCC-CHD3-CU
Pressure range: 150Lb~2500Lb (PN10~PN420)
Size range: 1/2"~8" (DN15~DN200)
Product type: Floating type
Product wall thickness implementation standard: ASME B16.34
Valve body structure: forging or casting molding
Test temperature: Low temperature test -196°C(-320°F)
PTFE, TFM, CTFM, PCTFE(KEL-F) and metal seats are available on request
Fire protection Design Implementation standard: API 607
Full path design
Stem flight-proof, low torque oriented design
Fireproof and antistatic design
Implementation standard for runaway emissions: ISO 15848
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

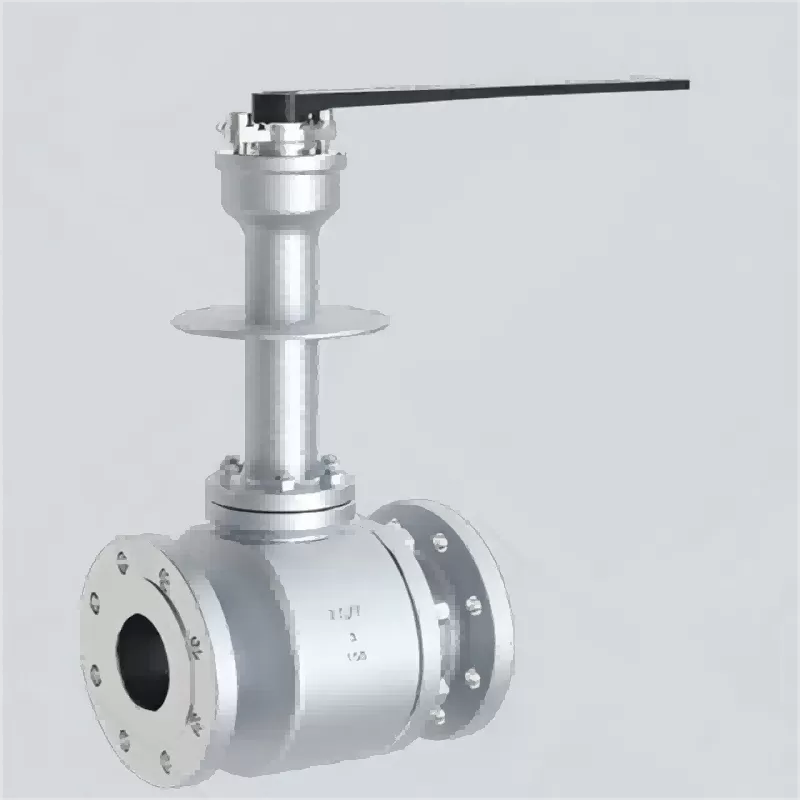

Low temperature ball valves are divided into low temperature floating ball valves and low temperature fixed ball valves. For the temperature above – 50 ℃, the long neck structure is generally not used. For the temperature below – 50 ℃, the neck length T is generally 250mm, or it is determined according to our design and calculation The cryogenic ball valve is mainly used to output liquid cryogenic media such as ethylene, liquid oxygen, liquid hydrogen, liquid nitrogen, liquid ammonia, liquid propane, liquefied natural gas, liquefied petroleum products, etc. It is not only flammable and explosive, but also needs to be gasified when heating up, and its volume expands hundreds of times when gasifying.
Thelow temperature ball valve is applicable to the management system of cryogenic liquid storage and transportation equipment. It has the characteristics of flexible switch and reliable sealing, and can also be used for the management system of other cryogenic and cryogenic media.
