Product Code : VF--ZCC-Z121-CU
Pressure environment :2500LB, 3500LB
Valve body material: Cast steel A216, WCB(carbon steel); Integral forged A105
Stainless steel (CF8, CF8M, CF3M, CF3, CN7M Hastelloy) Integral forged F304
Low-temperature steel, chromium-molybdenum steel, integral forging of special materials such as F11,F22, and P91
Connection form: Flange Welding
Nominal diameter :2"-18"
Applicable medium: water, oil products, steam - carbon steel + chromium-molybdenum steel;
Nitric acid, acetic acid, etc. - Stainless steel;
Propane, ethylene, etc. - low-temperature steel;
Working temperature: Carbon steel -29℃ to 425℃;
Stainless steel -40℃ to 550℃
Low-temperature steel -46℃ to 350℃
Chromium-molybdenum steel -29℃ to 550℃.
Structural form: Self-sealing

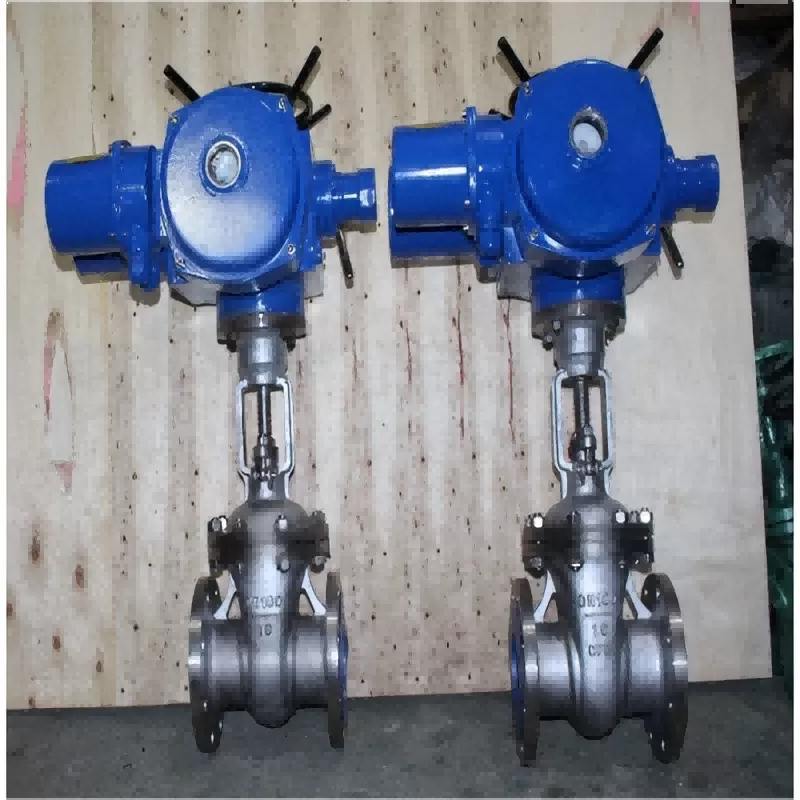

Drive methods: electric, pneumatic, hydraulic, gear, etc
Applicable industries: petroleum, chemical engineering, thermal power, pharmaceuticals, fertilizers, power plants and other industries
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Introduction:
For valves with a working pressure greater than 1.0Mpa and those functioning on the main production pipeline, strength and tightness performance tests should be conducted before installation. Only after passing the tests can they be put into use.

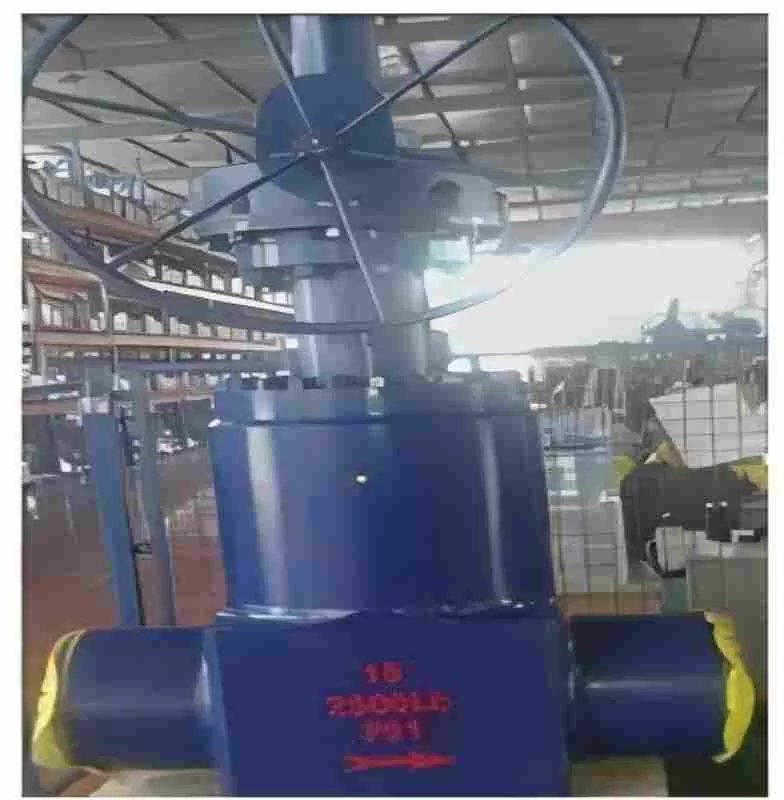

The 2500LB(3500LB) gate valve adopts the standard
The technical conditions for manufacturing acceptance shall be in accordance with the provisions of E101 of the Japanese Standard for valves used in thermal power generation.
2. The structural length of the valve shall comply with the provisions of E101. The products are widely used in pipeline industries such as petroleum, chemical engineering, metallurgy, machinery, power, and military industry. 3. The welding bevel of the valve body shall be in accordance with the provisions of ANSlB1625 or the dimensions provided by the user.
Application and performance specification of 2500LB(3500LB) gate valve
Purpose:
This product is mainly used as a hoist in gas and liquid medium pipelines to connect or cut off the medium flow. It is not suitable for regulating the medium flow rate. It features low flow resistance and relatively effortless opening and closing
