Product Code : VF--ZCC-Z91-CU
Product diameter :1/2-2
Product pressure :150-1500LB
Product materials: carbon steel, stainless steel, forged steel, chromium-molybdenum steel
Applicable media include water, steam, oil products, nitric acid, acetic acid, etc
Applicable temperature range: -29°C to 425°C,-29°C to 550°C,-29°C to 200°C
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

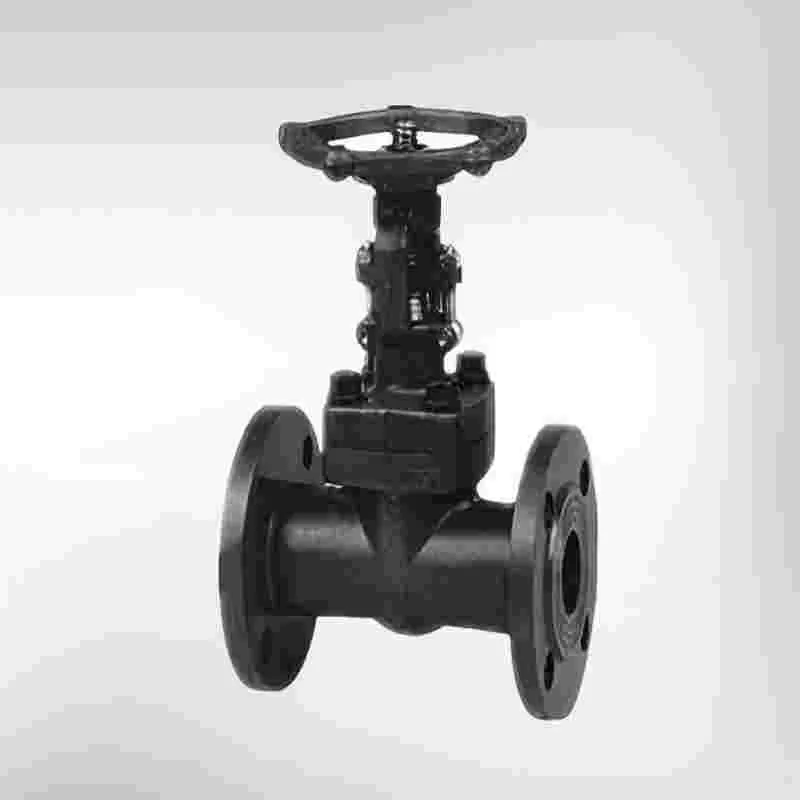

Product Overview: The opening and closing part of the high-pressure forged steel gate valve is a rigid solid gate plate. The movement direction of the gate plate is perpendicular to the fluid direction, and it can be used for full opening or full closing. The valve body is integrally forged, which is very suitable for high-temperature and high-pressure working conditions. Gate valves have low fluid resistance, and their sealing surfaces are less eroded and washed by the medium. They are easier to open and close. The flow direction of the medium is not restricted, and they do not disturb the flow or reduce pressure. They have a simple shape, short structural length, good manufacturing processability, and a wide range of applications.
Ii. Product Features of High-pressure Forged Steel Gate Valves:
The middle cavity adopts a pressure self-tightening sealing structure. The higher the pressure inside the cavity, the better the sealing performance. The two ends of the branch pipe are welded to meet different pipe connection requirements.
The sealing surfaces of the gate plate and the valve seat of the opening valve are formed by surfacing with stellite cobalt-based hard alloy. The motion seal features high hardness, wear resistance, high temperature resistance, corrosion resistance, good scratch resistance and a long service life.
The valve stem has undergone quenching and tempering and surface nitriding treatment - it has good corrosion resistance and scratch resistance.
Iii. Structural Forms of High-pressure Forged Steel Gate Valves:
Full bore or reduced bore;
2. Exposed pole with bracket;
3. Self-aligning packing pressure sleeves at both ends;
4. Bolt-type valve covers with wound gaskets, threaded sealed welded valve covers, or self-sealing valve covers;
5. Reverse sealing of the main body;
6. Socket welding ANSI/ASME B16.11;
7. The threaded end (NPT end) shall comply with ANSI/ASME B1.20.1.
The opening and closing part of the high-pressure forged steel gate valve is a rigid solid gate plate. The movement direction of the gate plate is perpendicular to the fluid direction, and it can be used for full opening or full closing. The valve body is integrally forged, which is very suitable for high-temperature and high-pressure working conditions. Gate valves have low fluid resistance, and their sealing surfaces are less eroded and washed by the medium. They are easier to open and close. The flow direction of the medium is not restricted, and they do not disturb the flow or reduce pressure. They have a simple shape, short structural length, good manufacturing processability, and a wide range of applications.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
