Product Code : VF--ZCC-22-CU

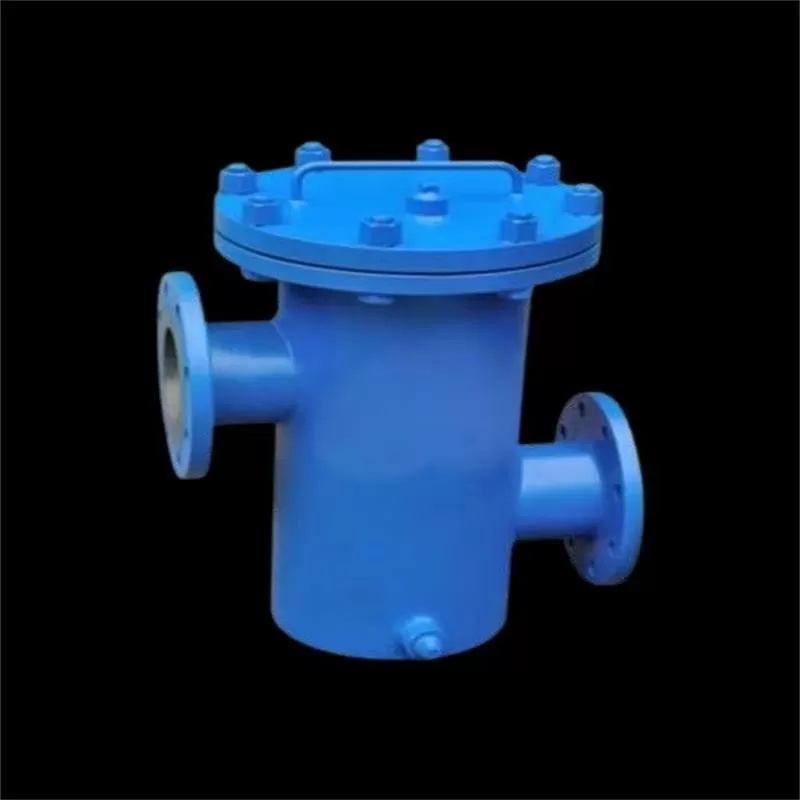

High and low basket type Strainers
Product diameter: DN25-200
Product pressure: 0.6-6.4MPa
Product materials: cast steel, stainless steel, alloy steel, etc
Manufacturing standards: Produced in accordance with Chinese GB, Ministry of Machinery JB, Chemical Industry HG, American API, ANSI, German DIN, Japanese JIS, JPI, and British BS. Valve body material: copper, cast iron, cast steel, carbon steel, WCB, WC6, WC9, 20#, 25#, forged steel, A105, F11, F22, stainless steel, 304, 304L, 316, 316L, chromium-molybdenum steel, low-temperature steel, titanium alloy steel, etc. Working pressure: 1.0Mpa-50.0Mpa. Operating temperature: -196℃ to 650℃. Connection methods: internal thread, external thread, flange, welding, butt welding, socket welding, ferrule, clamp. Drive mode: manual, pneumatic, hydraulic, electric
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
High and low basket filters can be used for filtering large particles in gases or other media. When installed on pipelines, they can remove larger solid impurities from the fluid, making the fluid purer. This ensures that machinery and equipment (including compressors, pumps, etc.) and instruments can operate normally, stabilizing the process and ensuring safe production. The main filtering materials include stainless steel perforated plates, stainless steel woven meshes and stainless steel sintered meshes, etc. After using it for a period of time, open the upper cover and take out the filter screen in the form of an elephant blue basket. Once washed, it can be restored to its original condition. It has the advantages of large dirt-holding capacity, high pressure resistance, and convenient installation and cleaning. It has been widely applied in industries such as petroleum, chemical engineering, pharmaceuticals and food.
Youdaoplaceholder0 High and low basket filters have extensive applications in several fields, mainly including the following aspects :
Youdaoplaceholder0 Chemical and petrochemical industries : For handling weakly corrosive materials such as water, oil products, ammonia, hydrocarbons, etc. In addition, IT is also suitable for handling corrosive materials such as caustic soda, soda ash, concentrated and dilute sulfuric acid, carbonic acid, aldehyde acid, etc.
Youdaoplaceholder0 Refrigeration and air separation : In refrigeration and air separation production, high and low basket filters are often used to handle low-temperature materials such as liquid methane, liquid ammonia, liquid oxygen and various refrigerants
Youdaoplaceholder0 Food and pharmaceuticals : In food and pharmaceutical production, high and low basket filters are used to handle materials with hygiene requirements, such as beer, beverages, dairy products, syrups, etc. Youdaoplaceholder2
Youdaoplaceholder0 Other industrial applications : It is also suitable for piping systems of steam, air, kerosene, water, etc., to remove rust debris and foreign objects, and protect valves and pipeline equipment
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
