Product Code : VF--ZCC-J88-CU

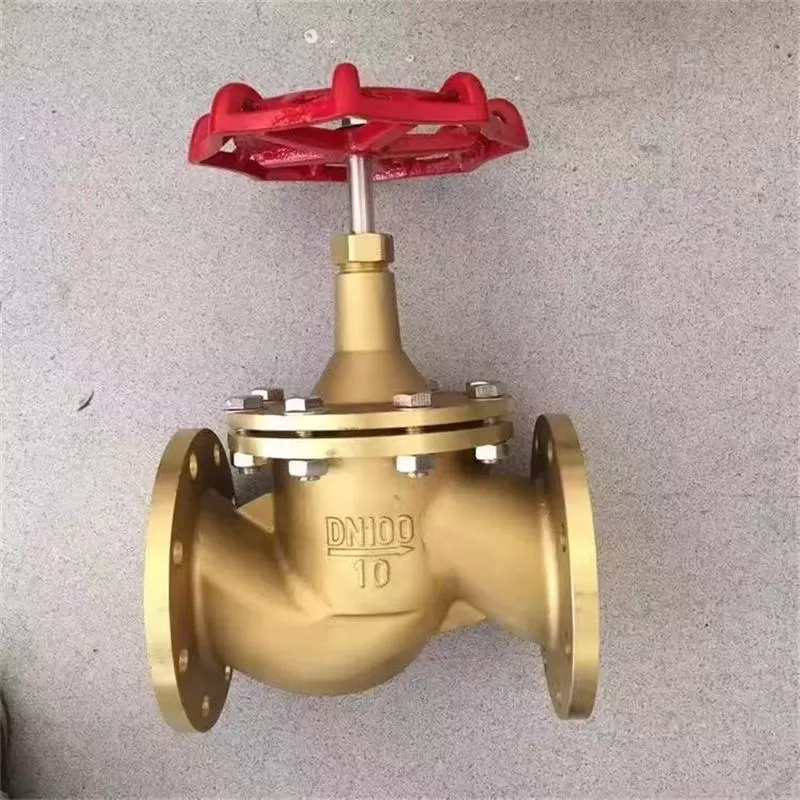

Brass globe valve
Product caliber: DN15-300
Product pressure: 1.0 ~ 4.0MPa
Material: Brass
Manufacturing standards: China GB, JB, HG, API, ANSI, DIN, JIS, JPI, BS production. Body material: copper, cast iron, cast steel, carbon steel, WCB, WC6, WC9, 20#, 25#, forged steel, A105, F11, F22, stainless steel, 304, 304L, 316, 316L, chromium molybdenum steel, low temperature steel, titanium alloy steel, etc. Working pressure 1.0Mpa-50.0Mpa. Operating temperature: -196℃-650℃. Connection method: internal thread, external thread, flange, welding, butt welding, socket welding, sleeve, clamp. Driving mode: manual, pneumatic, hydraulic, electric
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Brass globe valve Overview:
Brass globe valve is a completely connected or cut off the pipeline closed valve, it is widely used, with no friction sealing surface, small opening height, single-side sealing, saving materials, low cost, easy maintenance and so on. Copper valves for pipe and blast furnace soft water eliminate corrosion and unsafe factors.
Brass globe valve main parts materials:
Valve body
Cast copper
Valve clack
Cast copper
bonnet
Cast copper
Valve stem
0Cr18Ni9
Sealing ring
Polytetrafluoroethylene
Brass globe valve main technical parameters:
Nominal pressure
1.0-4.0 Mpa
Applicable medium
Water, gas, oil
Applicable temperature
0-220 ℃
brass globe valve is widely used in many fields, mainly including the following aspects :
home improvement field : brass globe valves are often used to control the flow of water in household water pipelines to ensure the smooth and safe flow
Industrial field : In the industrial field, brass globe valves are suitable for high-density fluid transmission pipelines, especially where precise flow control is required
medical field : in the control system of medical devices and equipment, brass globe valves can play an important role in ensuring the normal operation of medical equipment
energy industry : brass globe valves are widely used in natural gas pipelines and energy transmission systems to ensure the stable transmission of fluid
agricultural irrigation system : In agricultural irrigation system, brass globe valve is used for liquid control, improve irrigation efficiency
water heating system : brass globe valve is also widely used in water heating system, with good sealing performance, reliable quality
Advantages of brass globe valves include :
corrosion resistance and high temperature : brass material has excellent corrosion resistance and high temperature resistance, suitable for a variety of harsh environments
wear resistance : the selection of stainless steel spool ensures the wear resistance of the valve in the long-term use
flow regulating function : Brass globe valve has excellent flow regulating function, can precisely control the flow size
compact structure : its compact structure and compact size make it easy to install and use in various application scenarios
