Product Code : VF--TJCC-TJ6-CU
Technical parameters and performance:
Body type: straight through single seat casting ball valve
Nominal diameter: 15, 20, 25mm
Spool size: 3, 4, 5, 6, 8, 10, 12, 15, 20, 25mm
Nominal pressure: ANSI 125, 150, 300, 600 JIS10, 16, 20, 30, 40K PN1.6, 4.0, 6.4MPa
Connection type: Flange connection: FF, RF, RJ, LG
Flange standards: JIS B2201-1984, ANSI B16.5-1981, JB79-59, etc
Materials: Cast steel (ZG230-450), cast stainless steel (ZG1Cr18Ni9Ti, ZG1Cr18Ni12Mo2Ti, ZG316L), titanium, etc
Upper valve cover:
Room temperature type (P) : -17 ~ +230℃
Elongation type I (EⅠ) : -45 ~ -17℃ +230 ~ +566℃,
Elongation Type II (EⅡ) : -100 ~ -45℃,
Elongation type III (EⅢ) : -196 ~ -100℃
Note: The operating temperature shall not exceed the allowable range of various materials
Gland type: bolt pressing type
Packing: V-type PTFE packing, impregnated polytetrafluoroethylene asbestos packing, asbestos braided packing, graphite packing
Valve internal components:
Spool type: single seat plunger type spool
Material: stainless steel (1Cr18Ni9Ti, 1Cr18Ni12Mo2Ti, 17-4PH, 9Cr18, 316L), stainless steel surfacing Stele alloy, titanium and corrosion resistant alloy, etc
Executing agency:
Type: HA multi-spring film actuator
Diaphragm material: butadiene rubber with nylon cloth
Spring range: 20 ~ 100, 80 ~ 240kPa
Gas supply pressure: 140 ~ 400kPa
Air source interface: Rc14
Ambient temperature: -30 ~ +70℃
Valve action type: gas-closed or gas-open
Accessories: Positioner, air filter pressure reducer, holding valve, stroke switch, valve position transmitter, handwheel mechanism, etc
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product overview

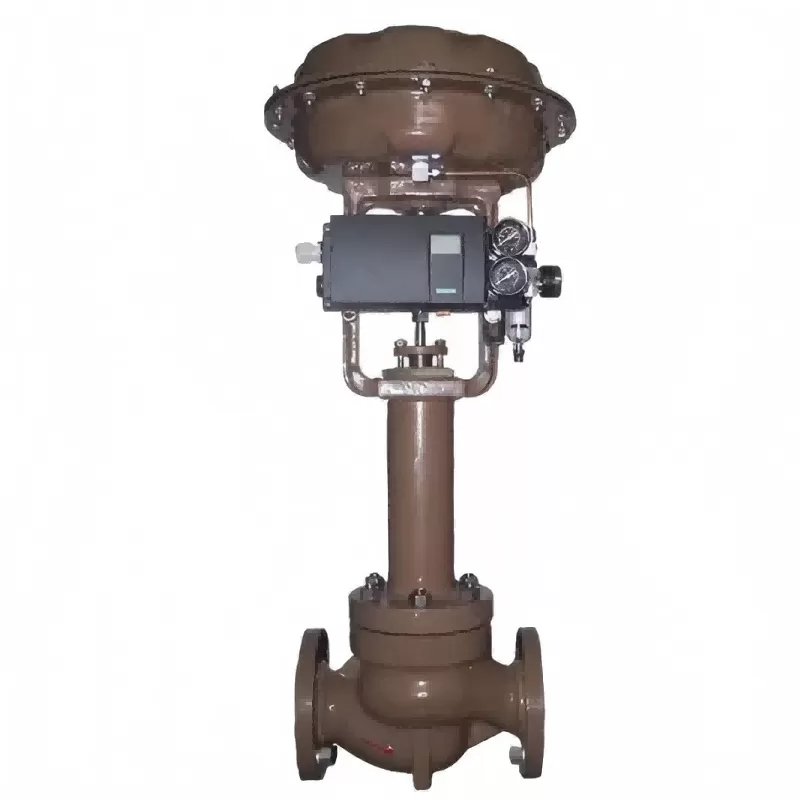

Pneumatic micro flow control valve is a product independently developed by our company for small flow conditions. It is composed of pneumatic film actuator and regulating valve body, the overall height is low, light weight, easy to equip. The installation height is 30% lower than the old product, the weight is 30% lower, and the flow coefficient Kv value is 10% higher.
Pneumatic micro flow control valve is a product independently developed by our company for small flow conditions. It is composed of pneumatic film actuator and regulating valve body, the overall height is low, light weight, easy to equip. The installation height is 30% lower than the old products at home and abroad, the weight is 30% lower, and the flow coefficient Kv value is 10% higher.
