Product Code : VF--DCC-D113-CU
Product model: D342H
Nominal diameter: DN50 - DN1200
Nominal pressure: PN1.0-2.5MPa
Design and manufacturing standards: GB/T 12238-2008, JB/T8527-1997
Structural length standard: GB/T 12221-2005
Connection flange standard: GB/T 9113
Pressure and temperature grade: GB/T 12224-2005
Test and inspection standard: GB/T 13927-2008
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

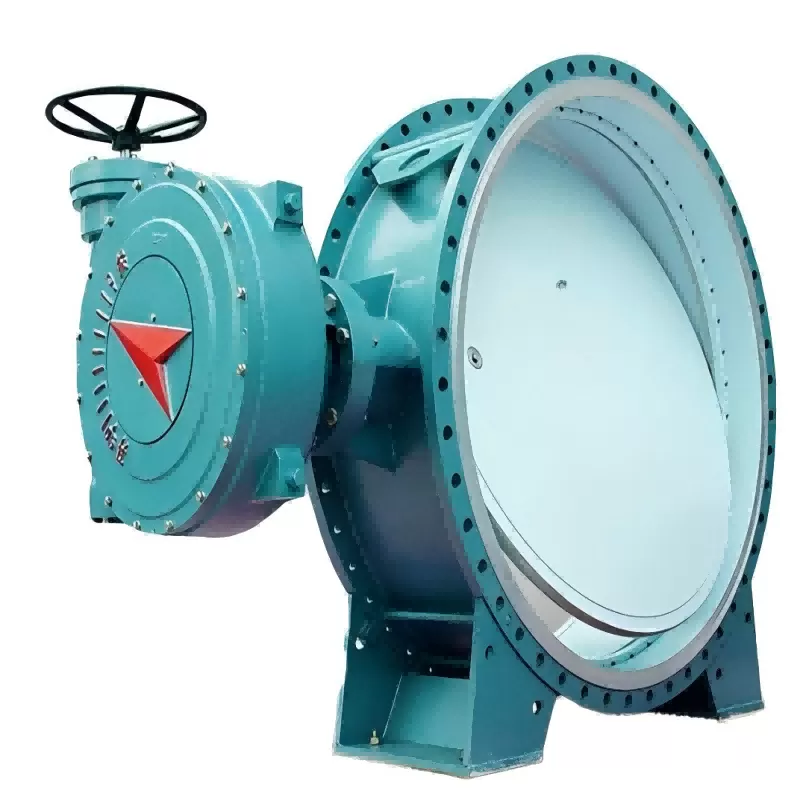

The D342H horizontal bidirectional metal hard seal butterfly valve/double eccentric bidirectional metal seal butterfly valve is widely used in water conservancy projects, tap water, power circulating water, petroleum, chemical and other industrial pipelines to cut off the flow of media.
Structural features of D342H horizontal bidirectional metal hard-sealed butterfly valve:
Butterfly valves feature bidirectional pressure-bearing and bidirectional metal seals. Their special structural form allows for arbitrary adjustment of the sealing pressure ratio. They adopt an eccentric S-shaped conical valve seat sealing surface, which makes the sealing surface less prone to damage and extends the service life of the valve.
2. The operating torque is relatively small, and it can be opened and closed by turning 90 degrees, which is light and fast.
3. It has low flow resistance and excellent hydraulic characteristics. The flow characteristic is approximately inclined straight line, with good energy-saving effect. The bidirectional seal has no requirements for the direction of water flow.
4. It features reliable sealing and an opening and closing life of over 25,000 times. 5. The valve plate adopts a double-plate truss multi-channel design that conforms to the fluid mechanics performance.
The D342H horizontal bidirectional metal hard seal butterfly valve/double eccentric bidirectional metal seal butterfly valve is widely used in water conservancy projects, tap water, power circulating water, petroleum, chemical and other industrial pipelines to cut off the flow of media.
