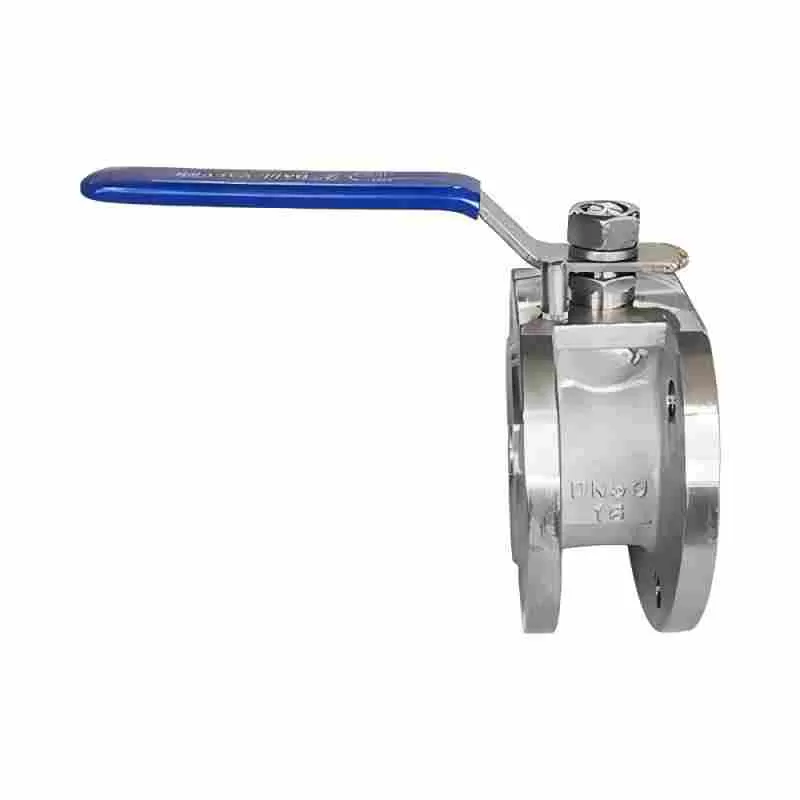

Q71F-16P Italian ultra-thin ball valve,Italian ultra-thin ball valve,ball valve

Compared with ordinary ball valves, the Q71F Italian-style ultra-thin ball valve has significant advantages such as short structural length, light weight, easy installation and material saving. The double-layer insulated jacketed ball valve has a good insulation effect. In addition, the valve seat adopts an elastic sealing structure, which ensures reliable sealing and easy opening and closing. It is equipped with a fire-resistant structure. In case of fire, it can still operate reliably and has good sealing performance. According to the user's needs, an anti-static structure can be provided. A 90° switch with a hole positioning plate is set up. It can be locked as needed to prevent misoperation.

Application of Q71F Italian ultra-thin Ball Valve: Wafer ball valves and wafer insulated jacketed ball valves are suitable for various pipelines with Class150, PN1.0 ~ 2.5MPa, and working temperatures of 29~180℃(with reinforced polytetrafluoroethylene sealing rings) or 29~300℃(with polystyrene sealing rings). They are used to cut off or connect the medium in the pipeline. By choosing different materials, it can be respectively applied to various media such as water, steam, oil products, nitric acid, acetic acid, oxidizing media, urea, etc.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original cond
