Product Code : VF--QCC-Q152-CU
Nominal diameter mmDN15-DN300
Material code C/P/R
Main valve body WCB/ZG1Cr18/ZG1Cr18Ni
Parts /Ni9Ti/12Mo2Ti
Sphere / 2 cr13/1 cr18ni9ti cr18ni12moti / 1
Stem / 2 cr13/1 cr18ni9ti cr18ni12moti / 1
Seal ring/reinforced polytetrafluoroethylene para-polystyrene metal seal
Filler/PTFE flexible graphite
Applicable/Steam, nitric acid, acetic acid
Working medium water, oil products
Applicable temperature -28℃ -300 ℃
Actuator type DA/SR series, GTD/GTE series, QGSY series, etc
Air source 0.4-0.7MPa
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
1. Design and manufacture: GB12237-89, API608, API 6D, JPI 7S-48, BS5351, DIN3357.
2, flange size: JB/ T74-90 (JB74-90), GB9112-9131, HGJ44-76, SH3406, ANSI B16.5, JIS B2212-2214, NF E29-211, DIN2543.
3, structure length: GB12221-89, ANSI B16.10, JIS B2002, NF E29-305, DIN3202.
4. Main test: JB/T 9092, API 598.

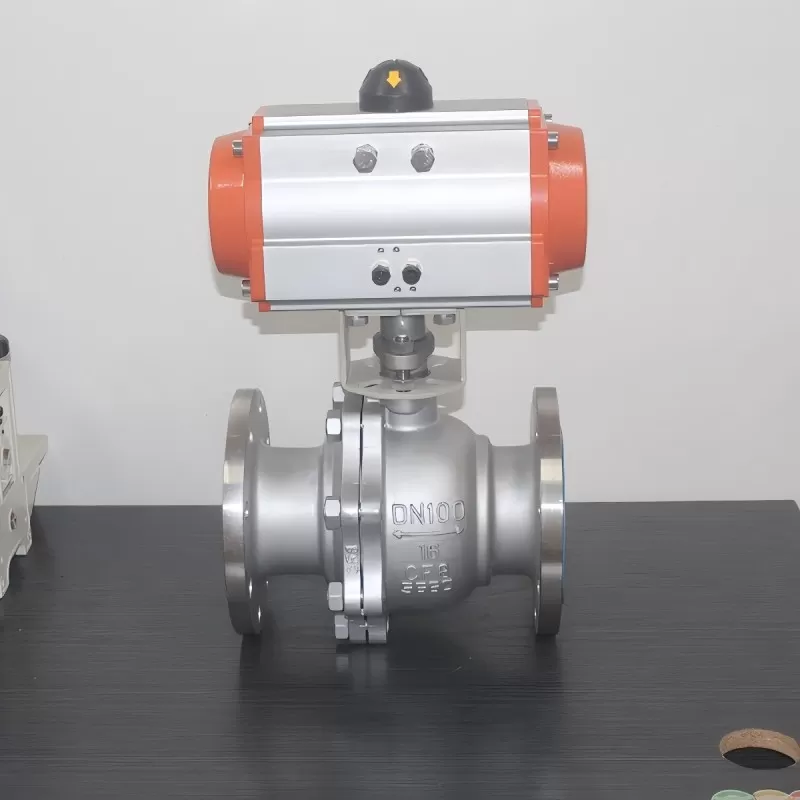

Q641W stainless steel pneumatic ball valve is a rotary valve with a Angle of 90°, excellent sealing performance, large flow coefficient, small flow resistance coefficient, simple structure, long service life and easy maintenance. There are two types of actuator with single action and double action. Products are widely used in chemical, petroleum, textile, electric power, food and pharmaceutical, refrigeration, paper industry system control.
Q641W stainless steel pneumatic ball valve is a rotary valve with a Angle of 90°, excellent sealing performance, large flow coefficient, small flow resistance coefficient, simple structure, long service life and easy maintenance. There are two types of actuator with single action and double action. Products are widely used in chemical, petroleum, textile, electric power, food and pharmaceutical, refrigeration, paper industry system control.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
