Product Code : VF--QCC-Q270-CU

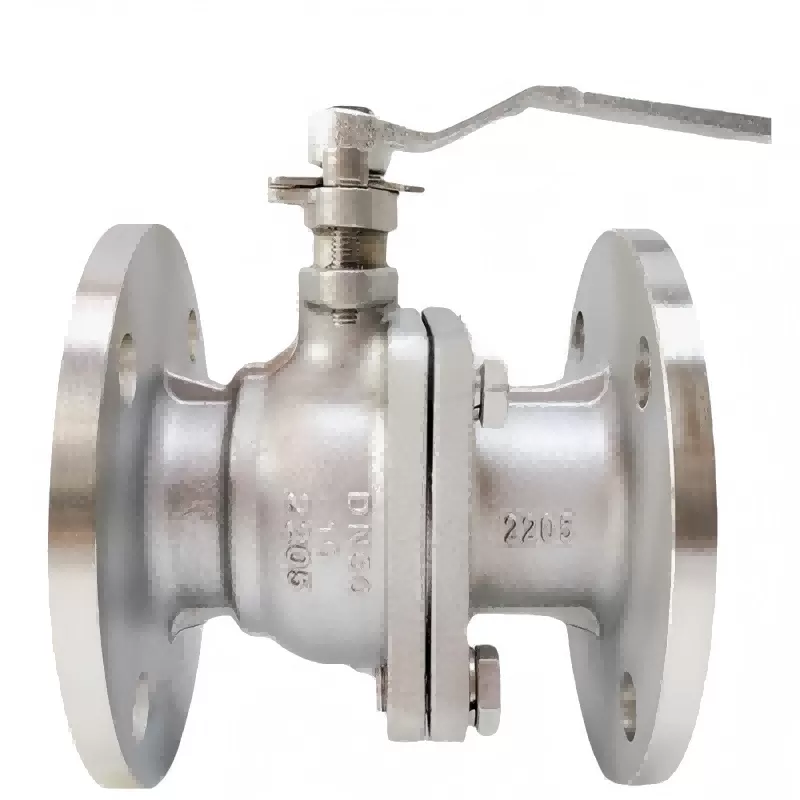

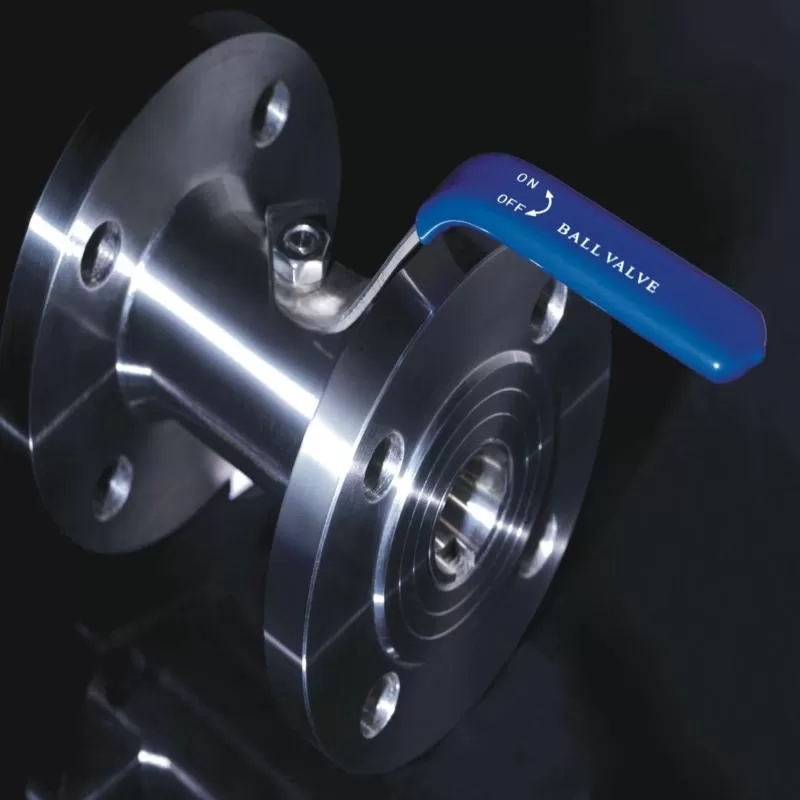

Product Name: Guangzhou-style Flanged Ball Valve
Product Model: Q41F
Nominal diameter: DN15 - DN100
Structural form: Spherical
Nominal pressure: 1.6Mpa to 4.0Mpa
Connection methods: flange, internal thread, external thread, welding
Applicable temperature: ≤150 ° C
Drive mode: manual, electric, pneumatic
Valve body material: carbon steel, WCB, cast steel, stainless steel 304/316/316L
Manufacturing standards: National standard GB, German DIN, American API, ANSI, ISO
Applicable media: food, water, oil, gas, liquid
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
The opening and closing part of the Q41F Guangzhou-type flanged ball valve serves as a sphere. It achieves the purpose of opening and closing by rotating 90 degrees around the axis of the valve stem. Ball valves are mainly used for cutting off on pipelines. They have a simple structure, good sealing performance, and within a certain nominal diameter range, they are small in size, light in weight, consume less material, have a small installation size, and have a small driving torque. They are easy to operate and can be quickly opened and closed.
The opening and closing part of the Q41F Guangzhou-type flanged ball valve serves as a sphere. It achieves the purpose of opening and closing by rotating 90 degrees around the axis of the valve stem. Ball valves are mainly used for cutting off on pipelines. They have a simple structure, good sealing performance, and within a certain nominal diameter range, they are small in size, light in weight, consume less material, have a small installation size, and have a small driving torque. They are easy to operate and can be quickly opened and closed.
