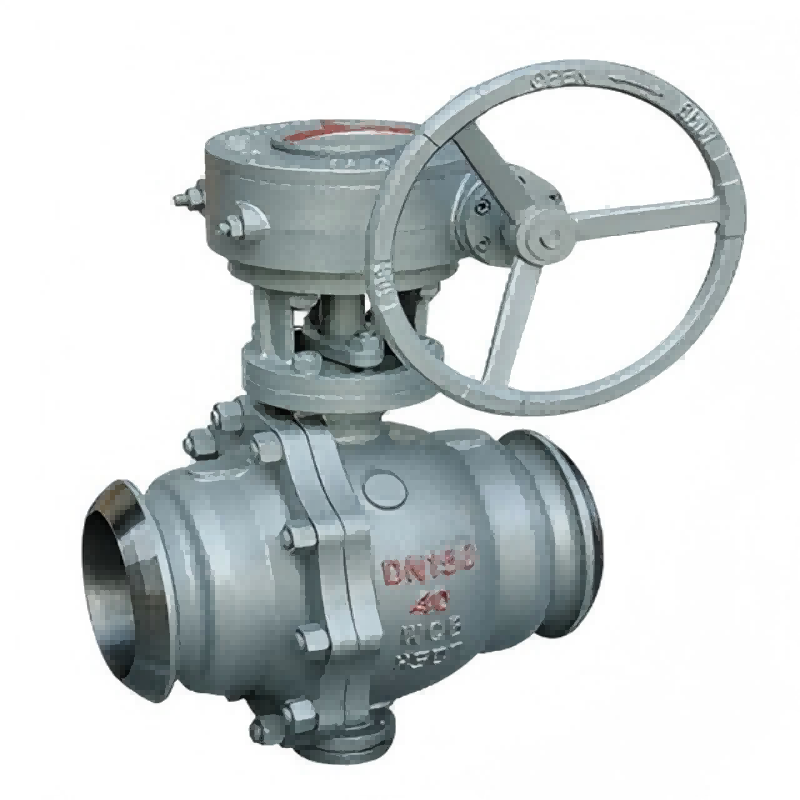

Q367H-40C welded ball valve,welded ball valve,ball valve

[Product Introduction]

The valve body is welded from steel pipes. 2. The ball pads are made of reinforced polytetrafluoroethylene. 3. The valve stem adopts explosion-proof design. 4. Temperature range: -60 to 200℃ \ n5. Drive mode: Manual or turbine drive. 6. Testing Standard: Api 598 [Detailed Description] Fully welded ball valves are widely used in various fields. Its quality and high-performance stability are beyond the reach of ordinary cast steel ball valves, and its service life is much longer than that of cast steel ball valves.

Fully welded ball valves are widely used in various pipeline equipment such as urban gas, urban heating, petrochemicals, shipbuilding, steel, pressure regulating stations, and power plants. The fully welded ball valve can operate reliably for a long time, requires maintenance, is easy to install, and the installation of the valve is more convenient. Application: Urban gas: Gas output pipelines, main lines and various branch supply pipelines, etc. Centralized heating: Output pipelines of large-scale heating equipment, main lines, and branch lines. Heat exchanger: Opening and closing of pipelines and various circuits. Steel plant: Various fluid pipelines, waste gas discharge pipelines, gas and heat supply pipelines, fuel supply pipelines. All kinds of industrial equipment: all kinds of heat treatment pipelines, all kinds of industrial gas and heat pipelines. Features: Integrated fully welded ball valve, no external leakage or other phenomena. As the valve seat is composed of a carbonized Teflon sealing ring and a spring, it has strong adaptability to changes in pressure and temperature, and will not cause any slip within the marked pressure and temperature range. The processing of the sphere is tracked and inspected by computer detectors, so the processing accuracy of the sphere is high. As the valve body material is the same as that of the pipe, there will be no uneven stress, nor will it deform due to earthquakes or when vehicles pass over the ground. The pipe is resistant to aging. The sealing ring body is made of PTFE material with 20%C (carbon) content to ensure no leakage (0%).
